Xtenzi Power Cord Harness Speaker Plug For PIONEER AVH4200NEX AVH4100
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020

Xtenzi Power Cord Harness Speaker Plug For PIONEER AVH4200NEX AVH4100

Available:In Stock
  • Product SKU: 91011-5
$12.99 USD
  • Order within

Key Features: XT91011-5

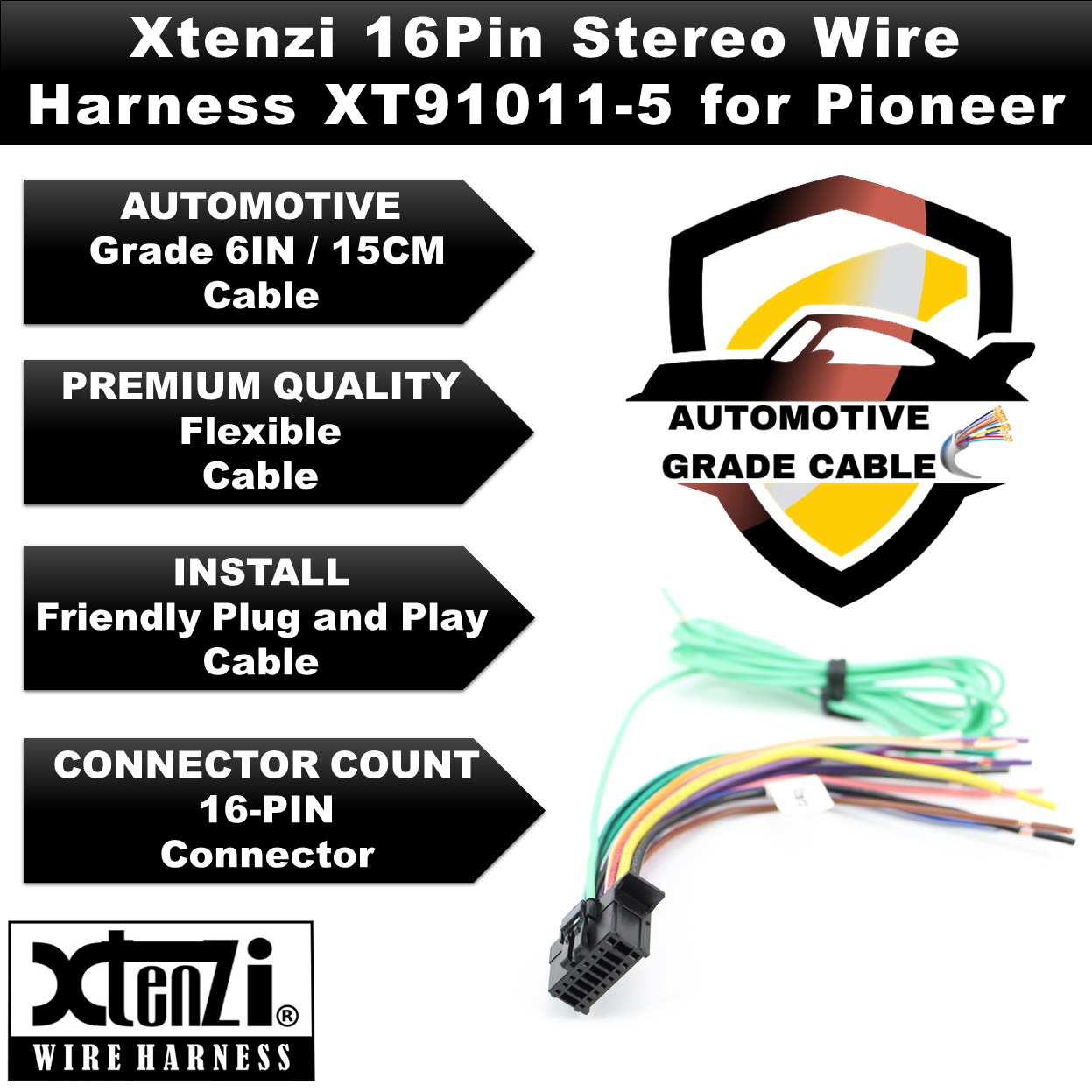

  • Xtenzi Brand Power wire harness for PIONEER / PREMIER Select AVH/SPHDA120 Receiver With Full 16pin Configuration
  • Xtenzi Replacement for Part No CDP1665, AVH-1300NEX, AVH-1330NEX, AVH-2300NEX, AVH-2330NEX, AVH-4000NEX, AVH-4200NEX, AVH-X1700S, AVH-X1800S, AVH-X2700BS, AVH-X2800BS, AVH-X3700BS, AVH-X3800BS, AVH-X3900BS, AVH-X4700BS, AVH-X491BHS, AVH-5700HS, AVH-X5800HS, AVH-X6700DVD, AVH-X6800DVD

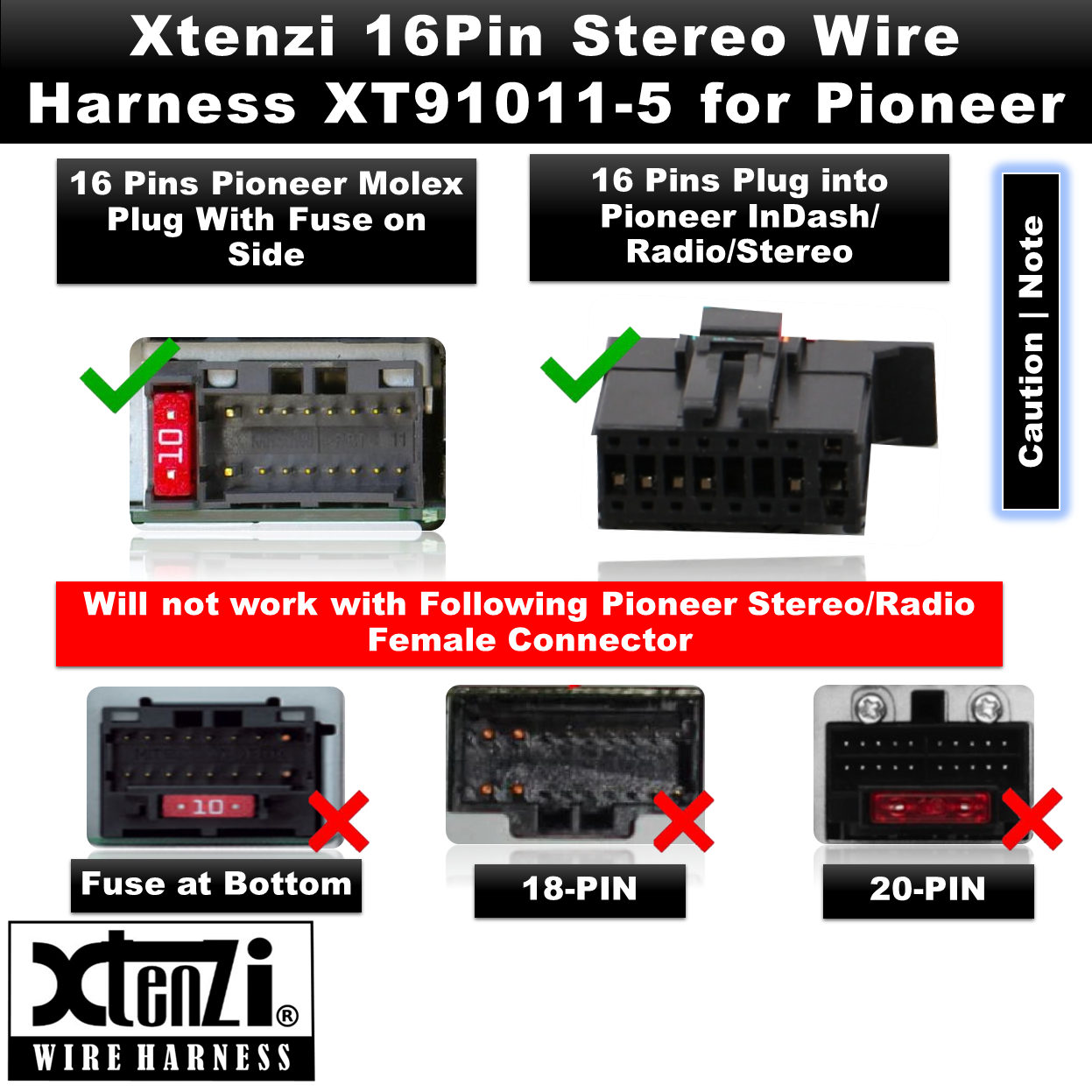

  • It is not universal, Pioneer has 8 different type plugs but this plug fits Select models.
  • Top quality all copper 18 gauge leads. Perfect Fit. Molex type 6 inch long black color

Product Description:

Xtenzi Premium wire Pioneer Power Cord Harness speaker Plug For Pioneer APP radio 4 and new generation AVH Receiver. All Wires are Color Coded and Marked for Easy Installation See EIA color reference.
Item: Wire Harness for Select Pioneer Models Xtenzi Brand Premium quality.

Compatible models with ref to function and compatibility:

  • SPHDA120 (App Radio4)
  • AVH-1300NEX
  • AVH-1330NEX
  • AVH-2300NEX
  • AVH-2330NEX
  • AVH-4000NEX
  • AVH-4200NEX
  • AVH-X1700S
  • AVH-X1800S
  • AVH-X2700BS
  • AVH-X2800BS
  • AVH-X3700BS
  • AVH-X3800BS
  • AVH-X390BS
  • AVH-X4700BS
  • AVH-X491BHS
  • AVH-X5700HS
  • AVH-X5800HS
  • AVH-X6700DVD
  • AVH-X6800DVD

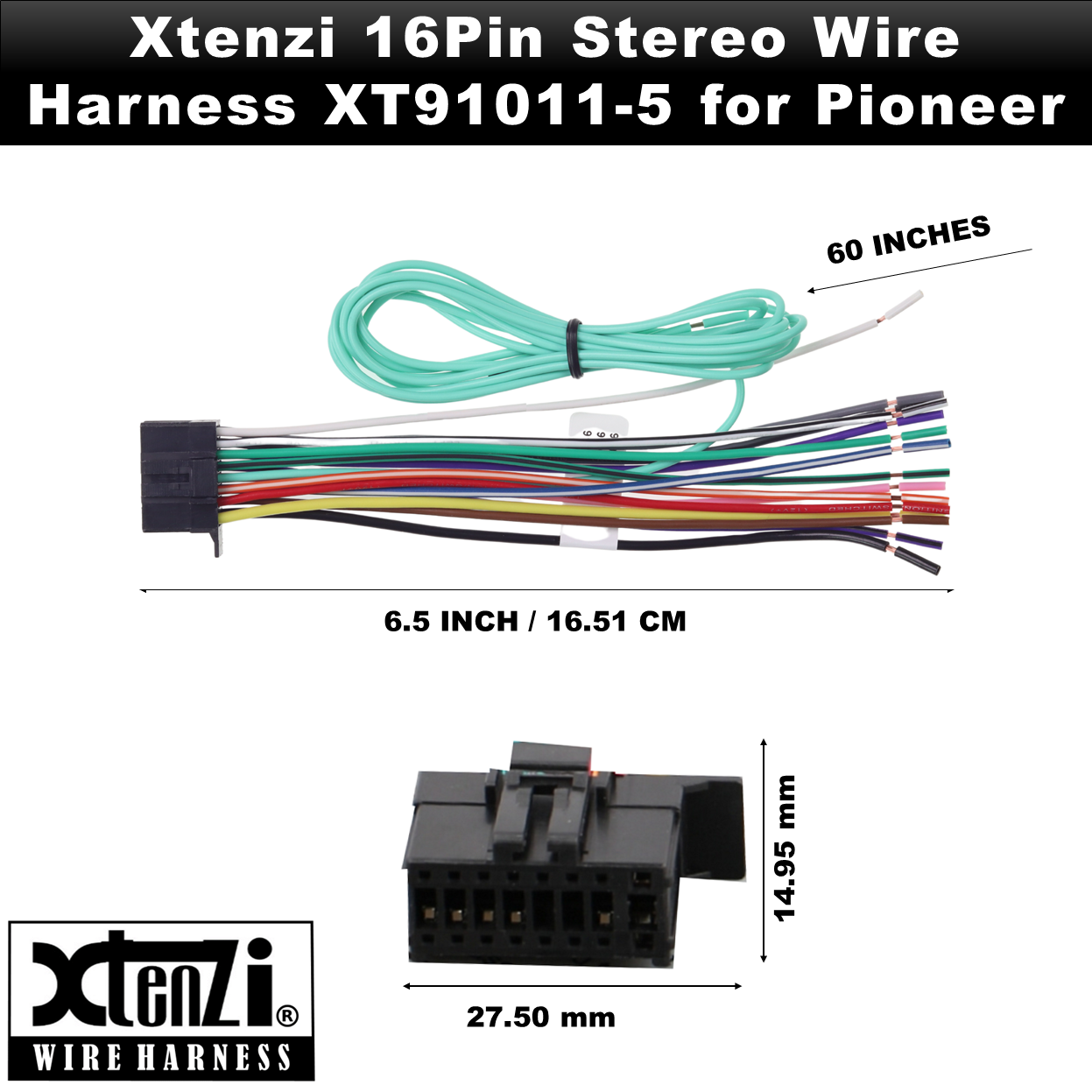

Technical Specifications:

  • Brand Name: Xtenzi
  • Pioneer Reference Part no: CDP1665
  • Length: 6'' (in) LONG
  • Plug Style: MOLEX
  • System Volts: 12 V

What is Included within the Package:

  • 1 x Xtenzi Radio Wire Harness for Pioneer


Caution: Just in case the specific model is not shown or cannot find replacement part please Email us or call us, Or not sure if this one is fully compatible please consult us before you place order. Thank you

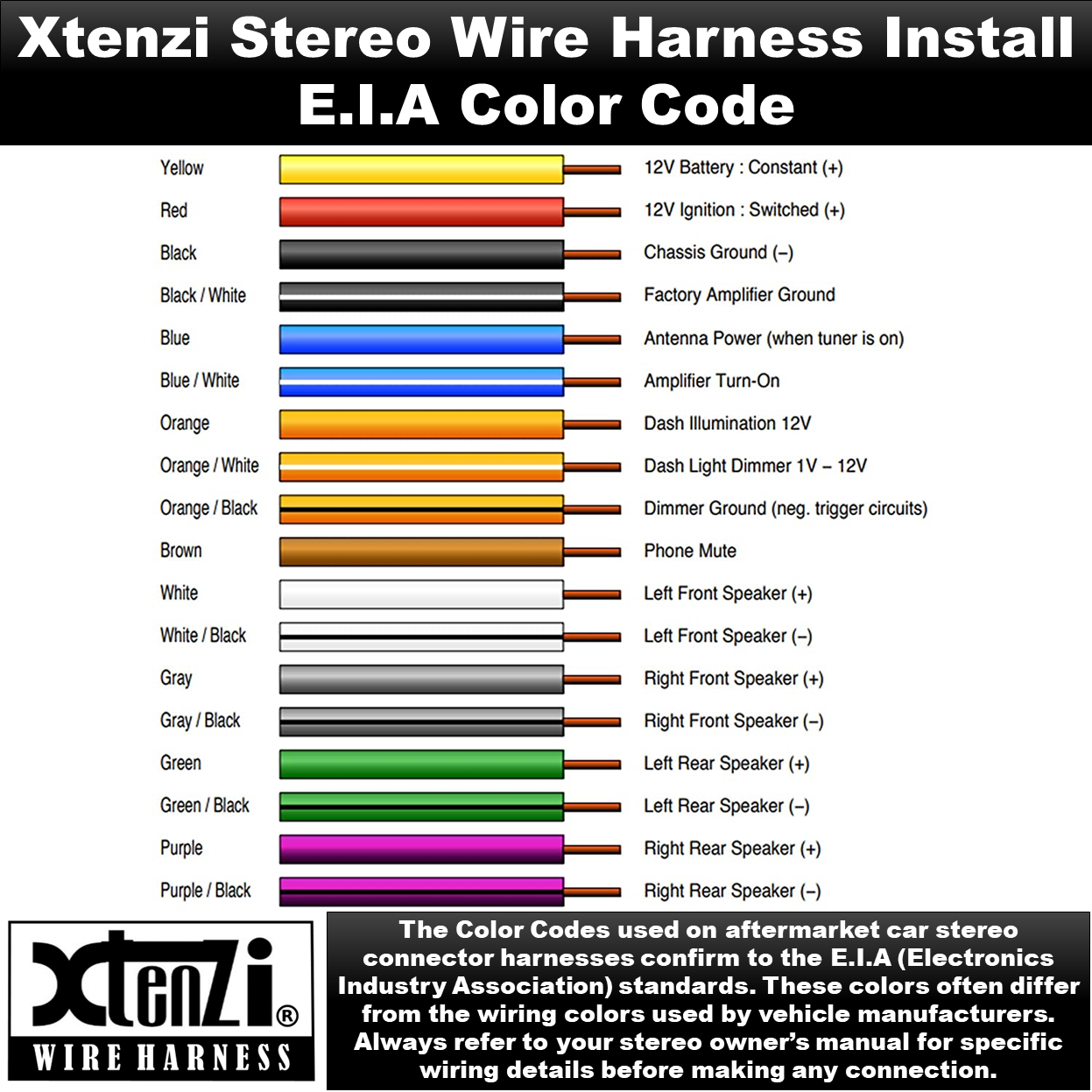

EIA-Wire Harness Connections: E.I.A. Color Code

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue - Power Antenna
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
* Some of the additional wires may have special functions, for more information about this please refer to the your stereo/radio manual or email us

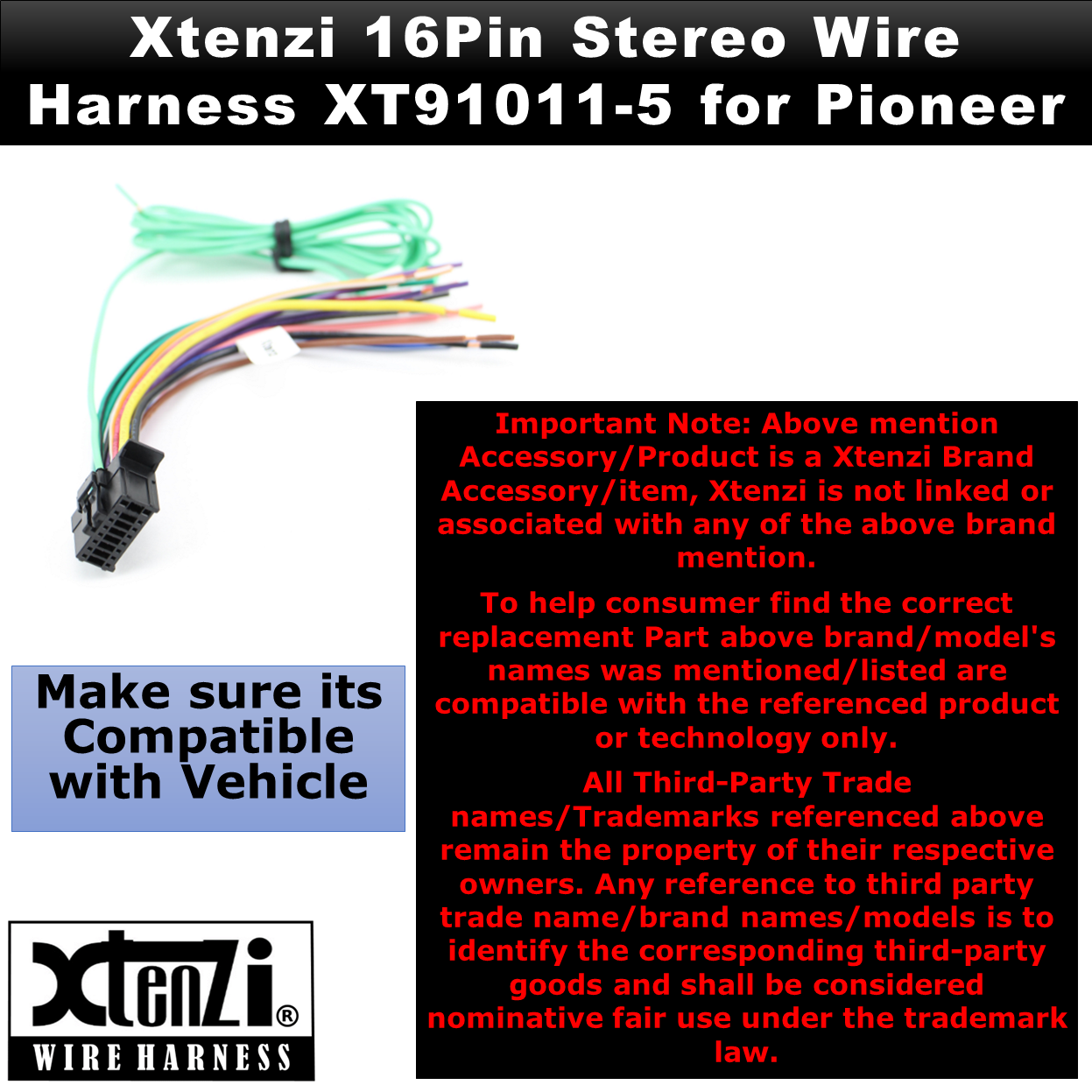

Legal Disclaimer/NOTE: Above mentioned accessory/product is a Xtenzi branded aftermarket accessory to help consumers find the correct part. All brand names listed are compatible with the referenced product or technology only. References are provided for information purpose only and do not constitute endorsement of any kind. All product names, trademarks and registered trademarks are property of their respective owners. All company, product and service names used in this website are for identification purposes only. Use of these names, trademarks and brands does not imply endorsement.
