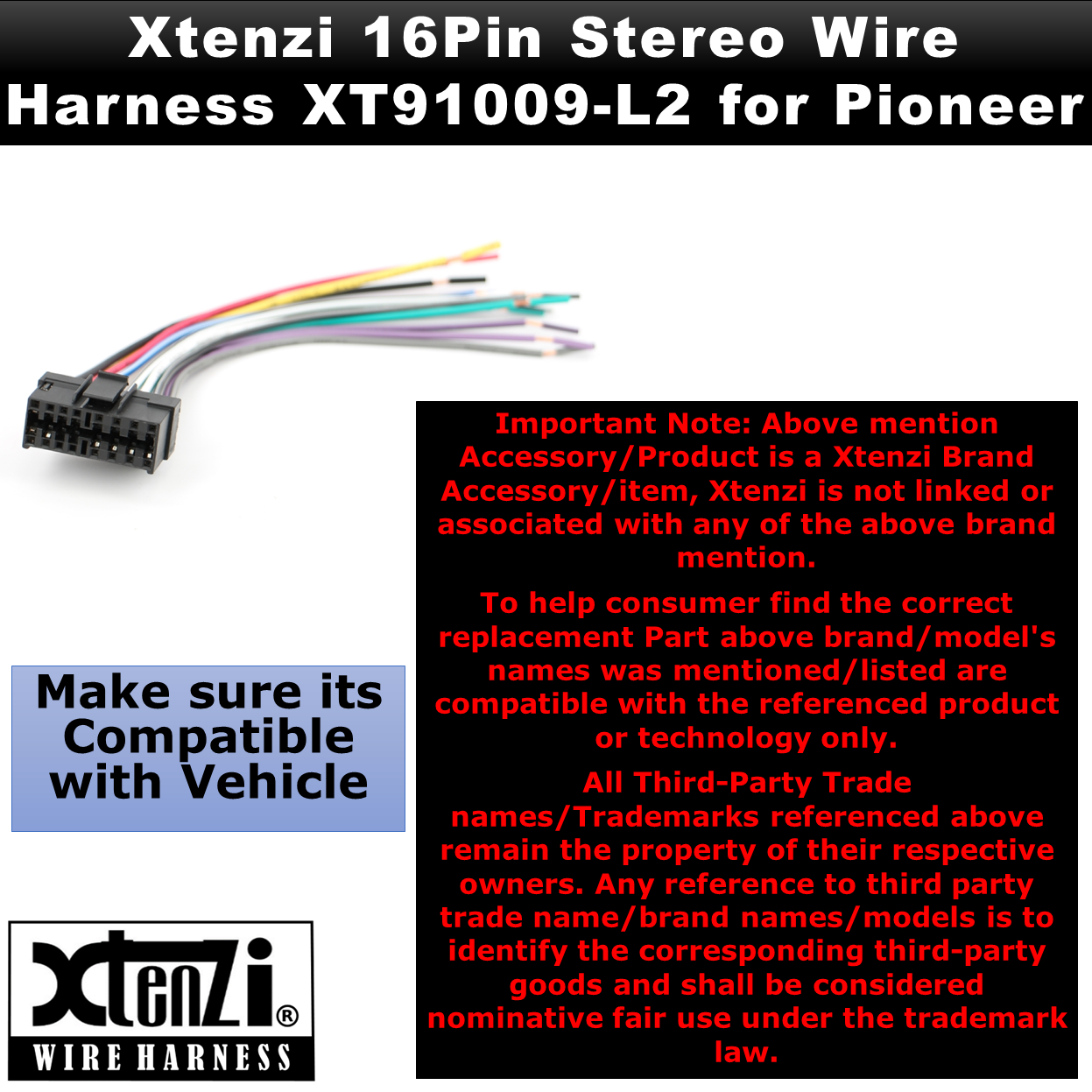

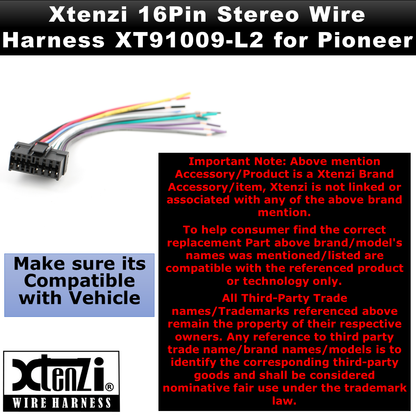

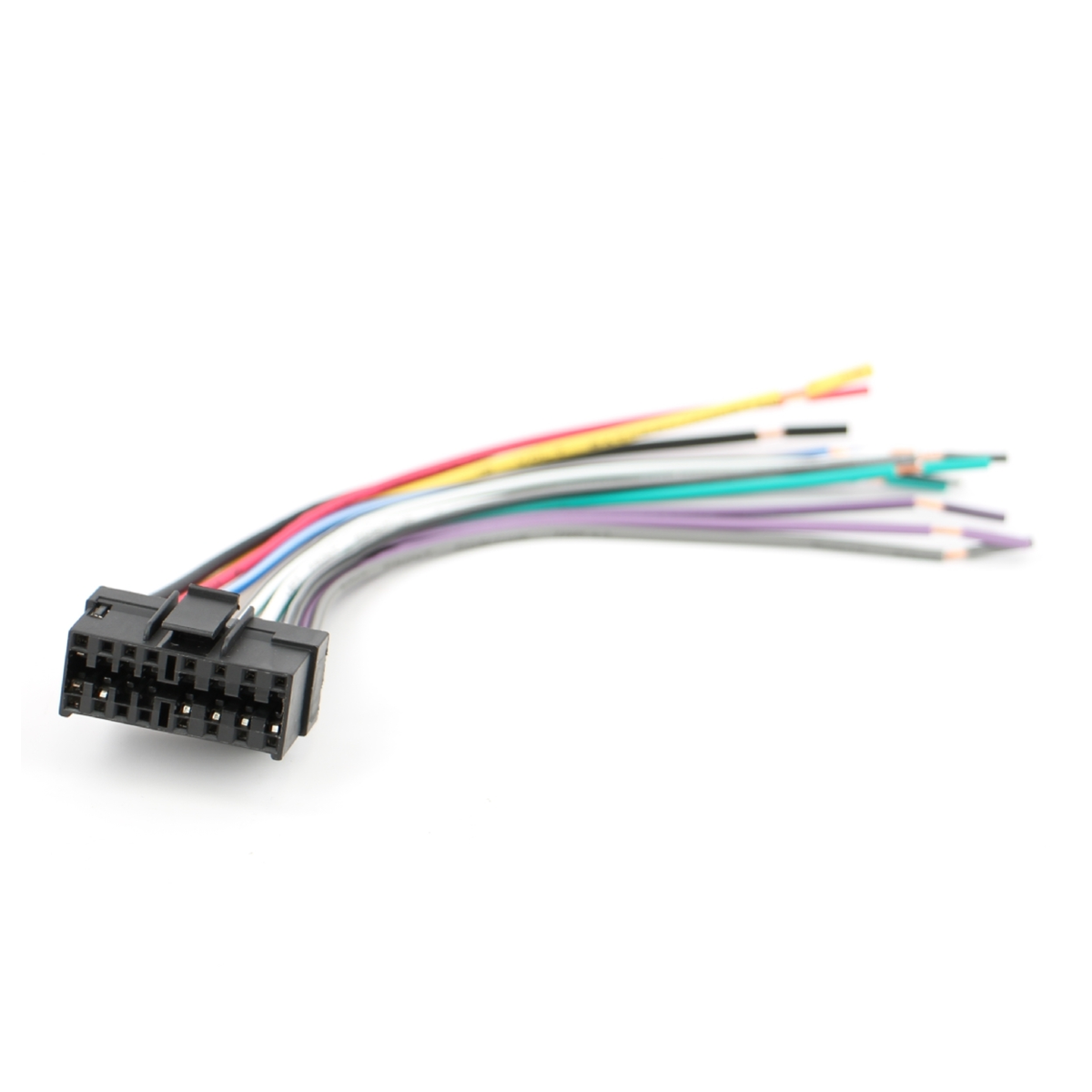

Xtenzi 16Pin Car Radio Wire Harness Connector for Pioneer DEHP200 DEHP300 DEHP3000 DEHP400 DEHP4000 - XT91009
- Product SKU: XT-XT-91009
- Order within
- Xtenzi Car Audio In dash Radio Wire Harness Compatible with Select models of Pioneer (DEHP200, DEHP300, DEHP3000, DEHP400, DEHP4000)
- Xtenzi 16 Pin Replacement Wire Harness Power Plug XT91009 is ideal for installing or connecting to an aftermarket stereo especially when the original harness is damaged or lost.
- Easy to install and follow EIA color-coded and special wire function as per compatible model.
- Xtenzi premium quality wiring harness 18-gauge 6inch long leads. Provides power and 4 speakers and a special function wire.
- High quality ABS plastic molded connector for the perfect fit.
- Pre-stripped to make installation quick and easy. Heat resistant for a lifetime.
- Allows installation of aftermarket radio and factory wiring and connector.
- One Year Xtenzi Warranty. Authorized Internet dealer for Xtenzi Brand. Over 7000 Satisfied Customers.
Thinking of replacing your aftermarket harness, then the Xtenzi wire harness is a must for a quick and clean installation. The Xtenzi premium quality power harness is compatible with Pioneer. Our premium quality wire harnesses help to install your aftermarket stereo with ease. The Xtenzi harness eliminates cutting your OE radio plug and allows you to reinstall your factory receiver if necessary. After connecting the wire harness, your install is made simple with our E.I.A. color coded wires.
Compatible with the following Vehicles:
Interchange Part Number:
- Brand Name: Xtenzi
- Model Number: XT91009
- Wire Length: 6 inch/15CM
- Connector Pin Count: 16-Pin Connector
- Connector Material: ABS plastic molded connector.
- Type: Replacement Wiring Harness.
- Warranty: One-year Xtenzi Warranty. (Terms and condition apply)
What is Included within the Package:
- 1 x Xtenzi Car Wire Harness
EIA-Wire Harness Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Blue - Power Antenna
- Orange - Dash Light Dimmer/Illumination
- Green - Left Rear Speaker (+)
- Green with Black Stripe - Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
* Some of the additional wires may have special functions, for more information about this please refer to the stereo/radio manual or email us.
1) Compatibility Chart may vary depending on vehicle options, production dates, and install application. Please inquire before purchase.
2) Please measure the plug and count the pins before purchase
Some wire functions/Color may be different, please read your Radio install guide carefully or ask an installer. Please check on the back of your car stereo to see if the plug of this harness fits, if you are unsure of fitting, please contact us for support before purchase or consult an installer.
Legal Disclaimer/NOTE:Above mentioned accessory/product is an Xtenzi branded aftermarket accessory to help consumers find the correct part. All brand names listed are compatible with the referenced product or technology only. References are provided for information purposes only and do not constitute endorsement of any kind. All product names, trademarks and registered trademarks are the property of their respective owners. All company, product and service names used in this website are for identification purposes only. The use of these names, trademarks and brands does not imply endorsement.
