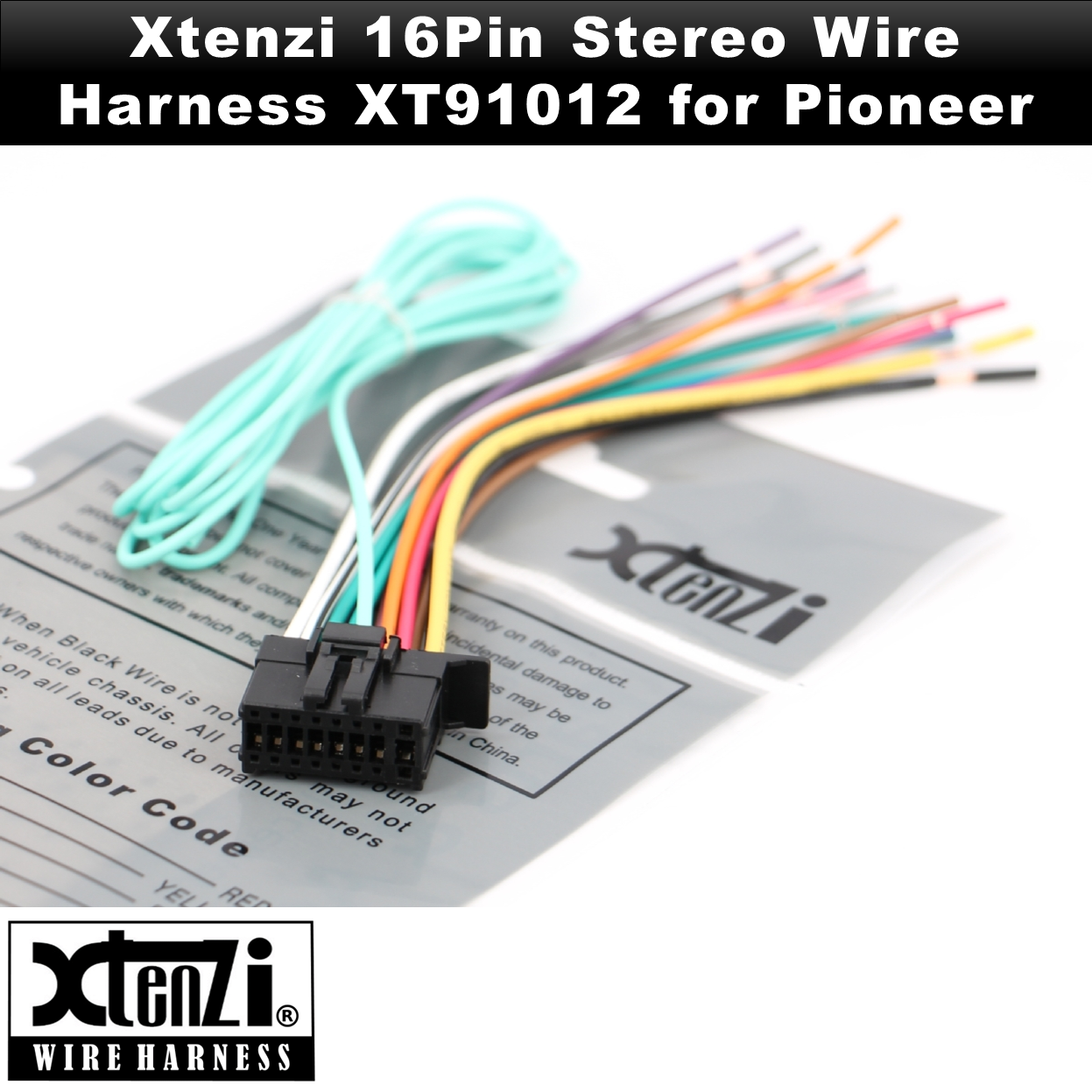

Xtenzi Wire Harness Radio for Pioneer For Navigation DVD Receiver Avic-Z150BH, X950BH, X850BT, X8510BT -Xtenzi
- Product SKU: 91012
- Order within
When replacing your Aftermarket Harness or missing Harness, the Xtenzi wire harness is a must for a quick and clean installation. It Help to install aftermarket stereo with ease. After connecting it, your install is simple as the wires will color-match according to function.
Xtenzi brand wire harness made to work as replacement for your Pioneer Stereo Receivers radio.
Compatible models with ref to function and compatibility,

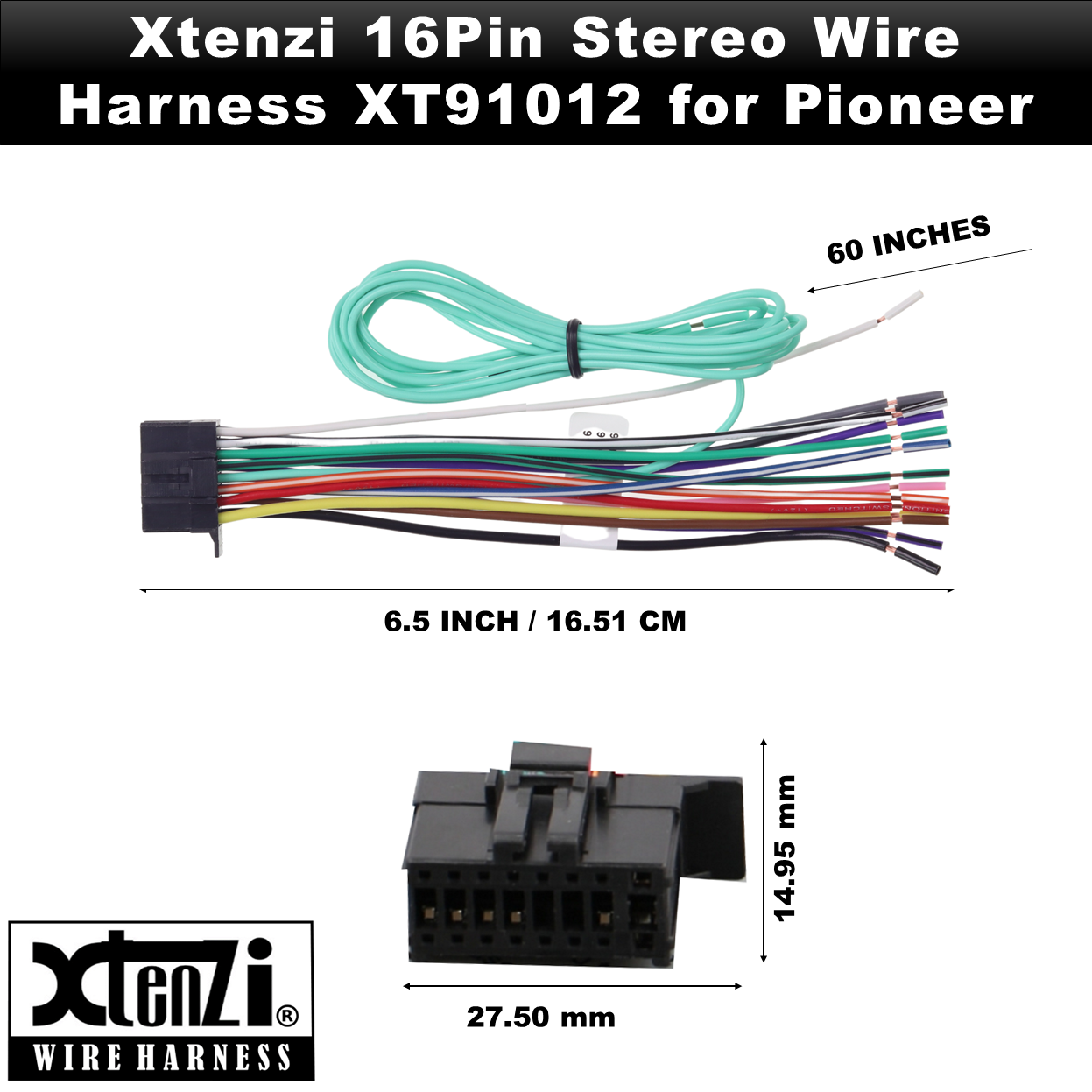

LENGTH: 6'' (in) LONG

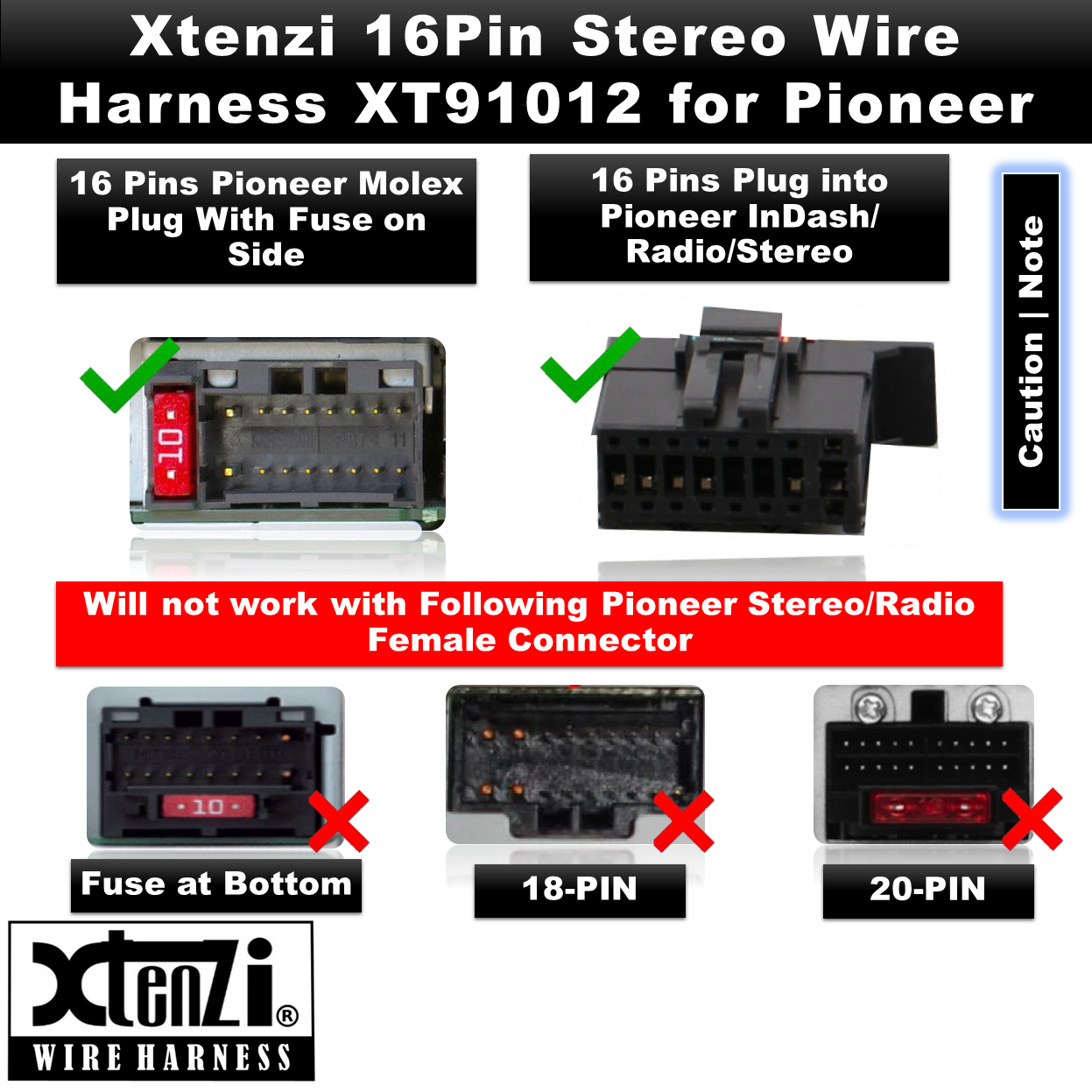

PLUG STYLE: MOLEX
System Volts: 12 V

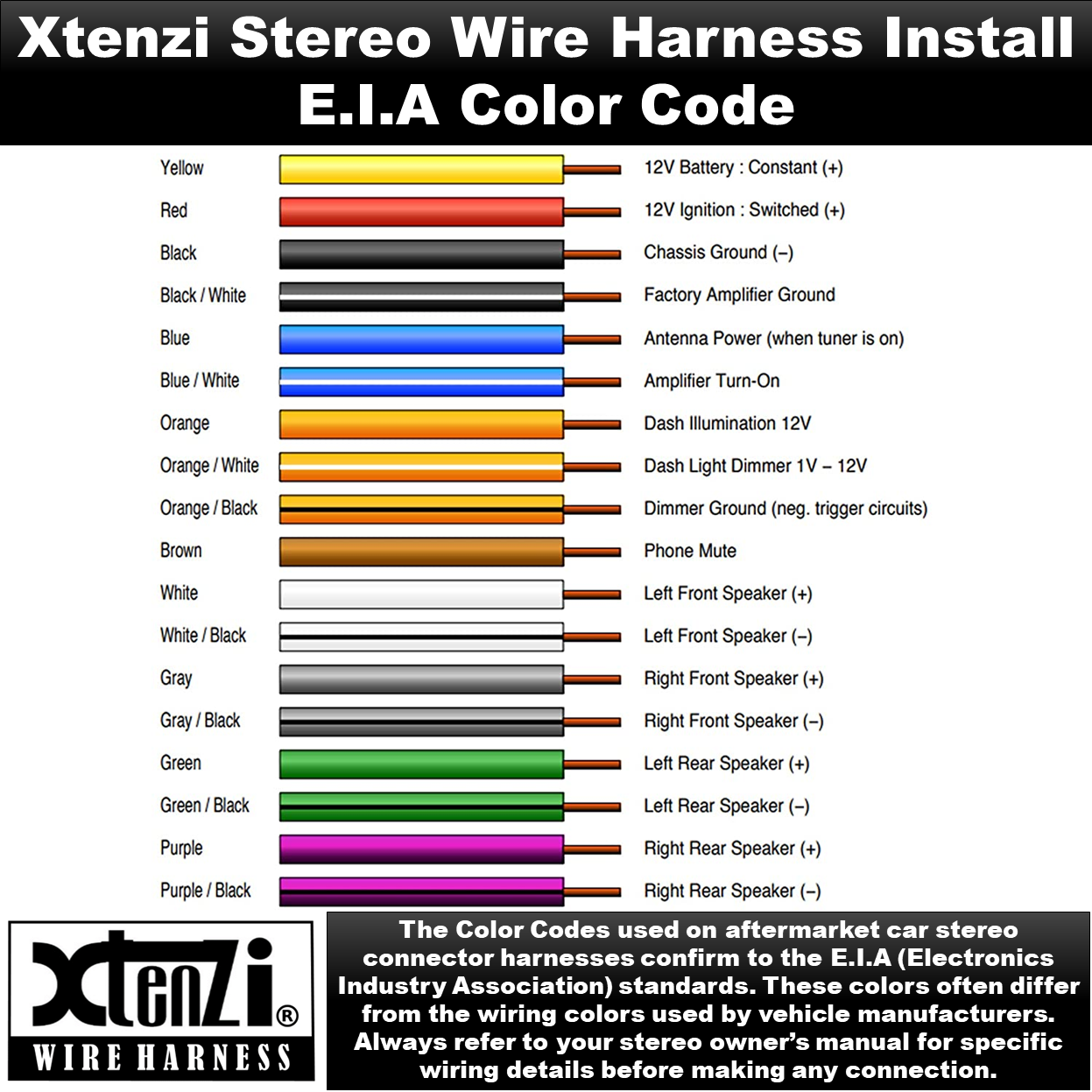

All Wires are Color Coed and Marked for Easy Installation See EIA color reference.
Some new models listed below that are compatible to this harness,
Technical Harness Specs:
- Brand = Xtenzi
- Wire length = 6 inch
- Warranty = One year
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us
- Wire harness For Radio/Stereo – Qty 1PCS.
