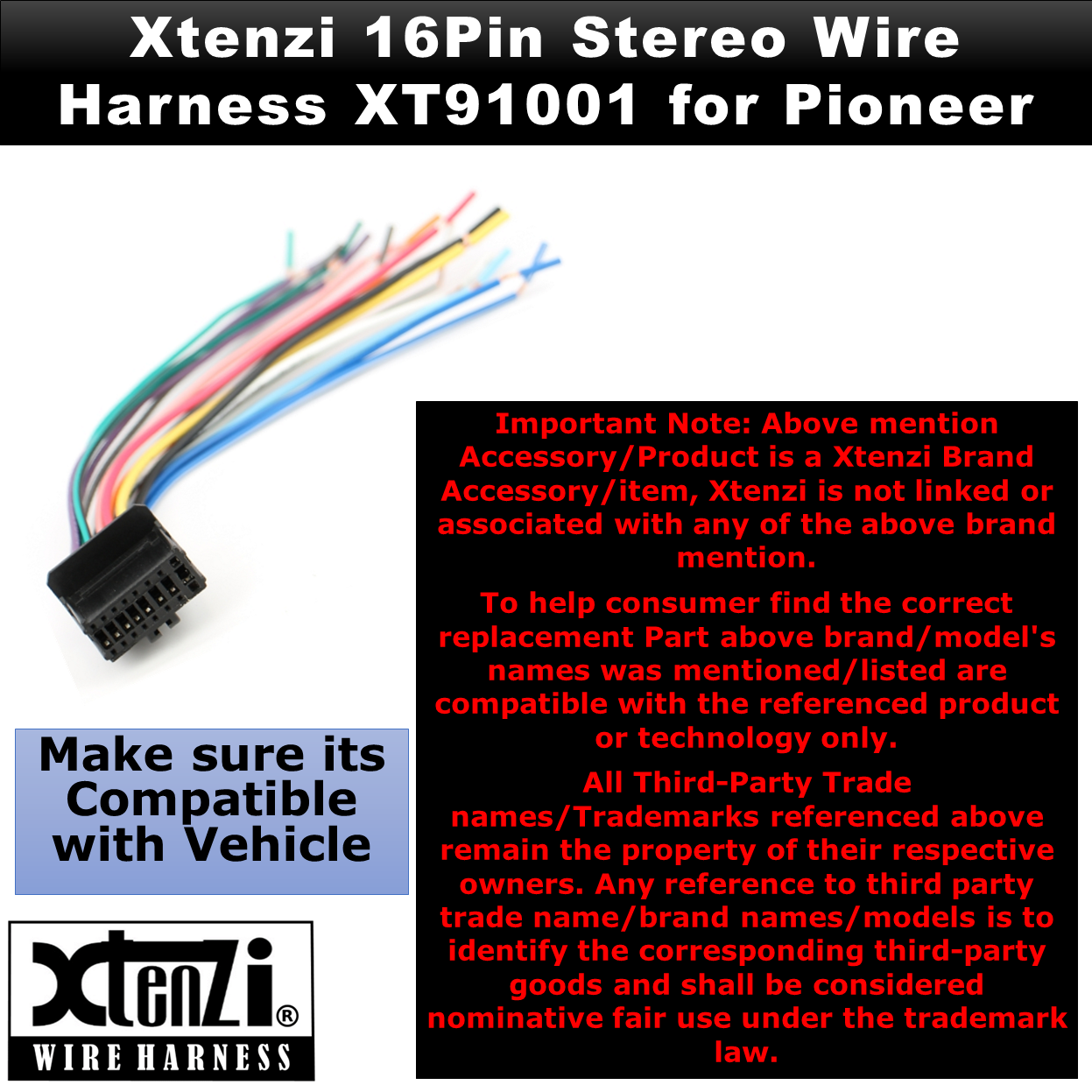

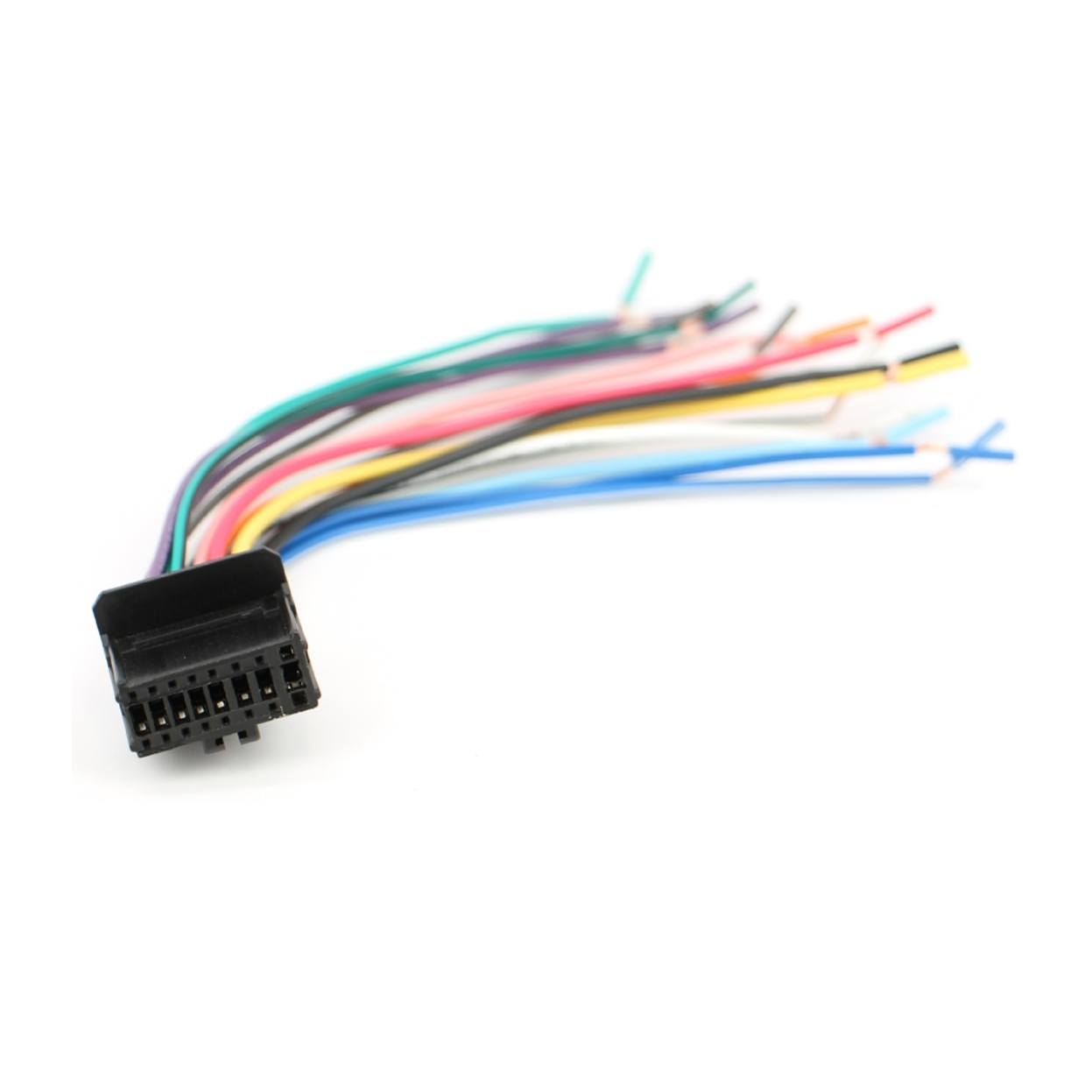

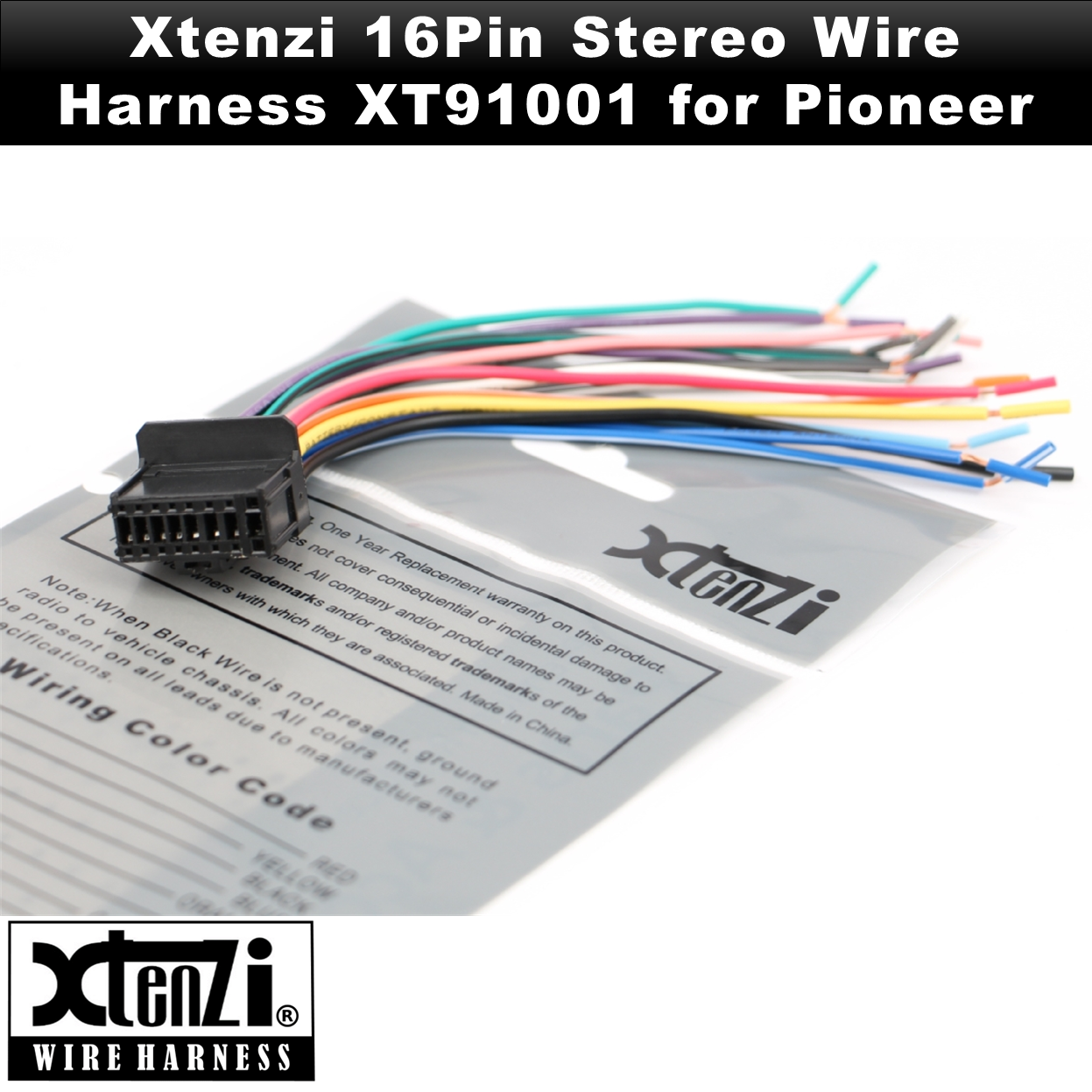

Xtenzi Wire Harness Radio for Pioneer DEH models CDE7060
- Product SKU: 91001
- Order within

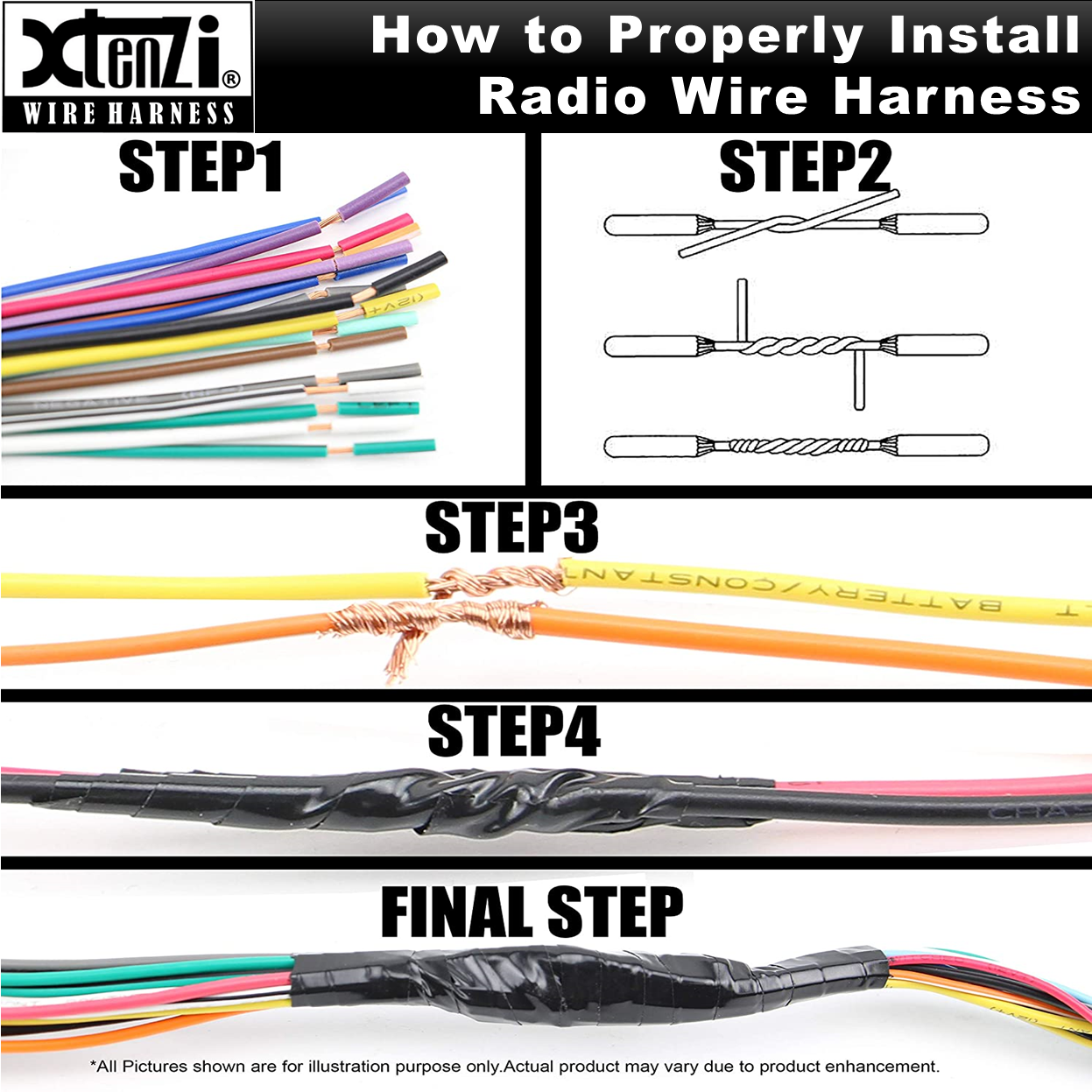

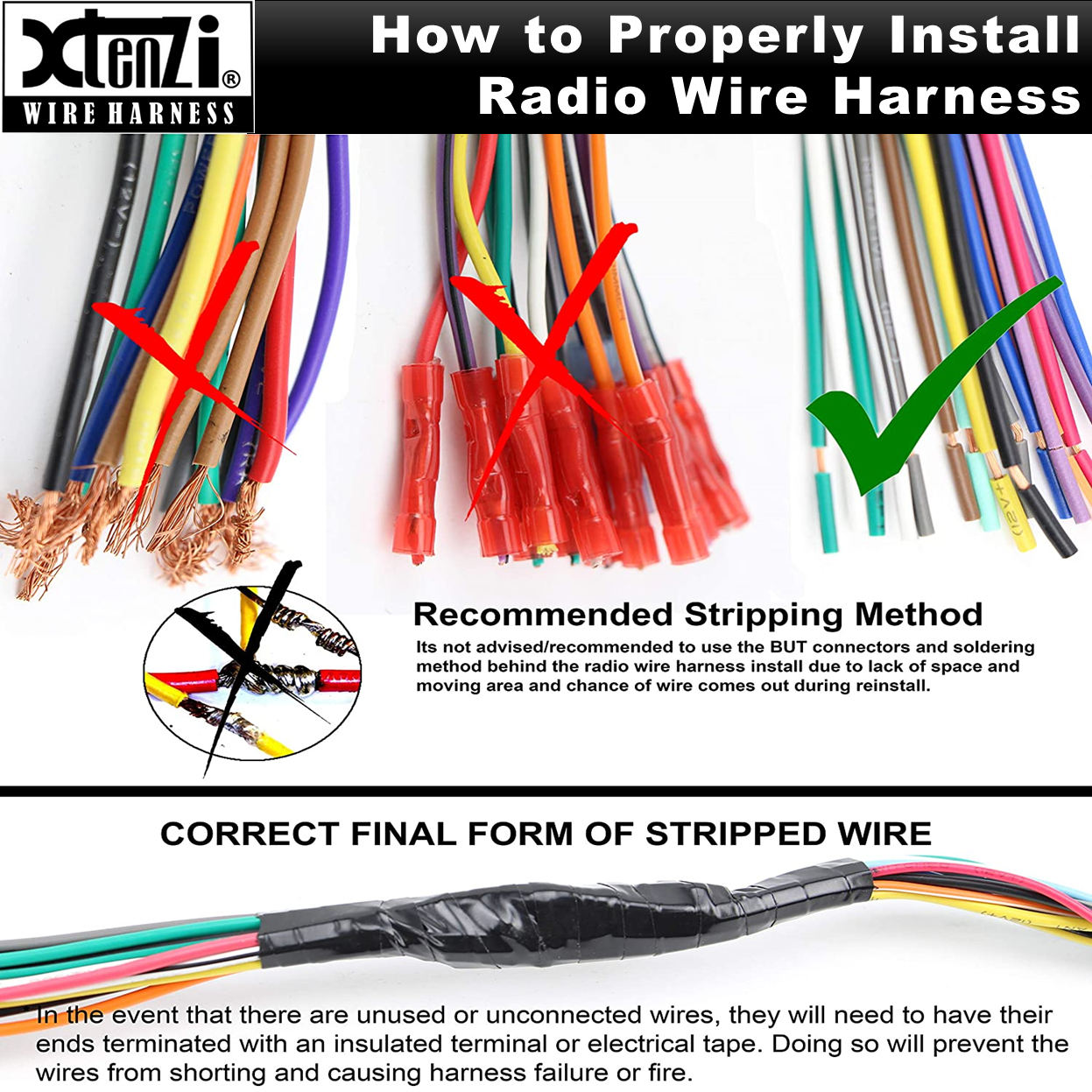

When replacing your Aftermarket Harness or missing Harness, the Xtenzi wire harness is a must for a quick and clean installation. It Help to install aftermarket stereo with ease. After connecting it, your install is simple as the wires will color-match according to function.
Xtenzi brand wire harness made to work as replacement for your Pioneer Stereo Receivers radio.

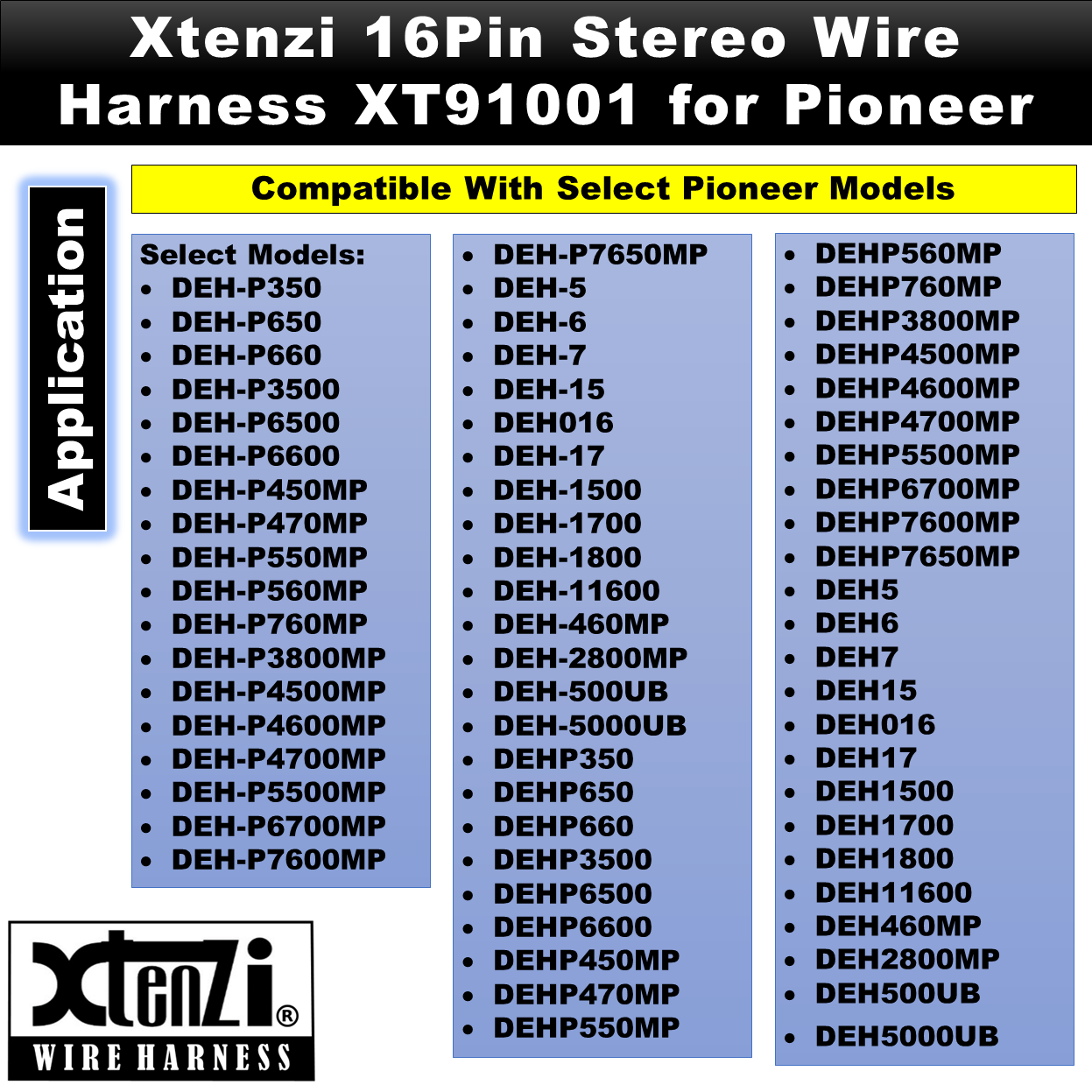

Some new models listed below that are compatible to this harness,
PIO1603-21, DEH-5, DEH-1500, DEH-15, DEH-P3500,
DEH-P350, DEH-P4500MP, DEH-P450MP, DEH-P5500MP,
DEH-P550MP, DEH-P6500, DEH-P650, DEH-11600, DEH016,
DEH-6, DEH-P4600MP, DEH-460MP, DEH-P560MP, DEH-P6600,
DEH-P660, DEH-P7600MP, DEH-P760MP, DEH-P7650MP, DEH-7,
DEH-1700, DEH-17, DEH-P4700MP, DEH-P470MP, DEH-P6700MP,
DEH-1800, DEH-2800MP, DEH-P3800MP, DEH-5000UB, DEH-500UB

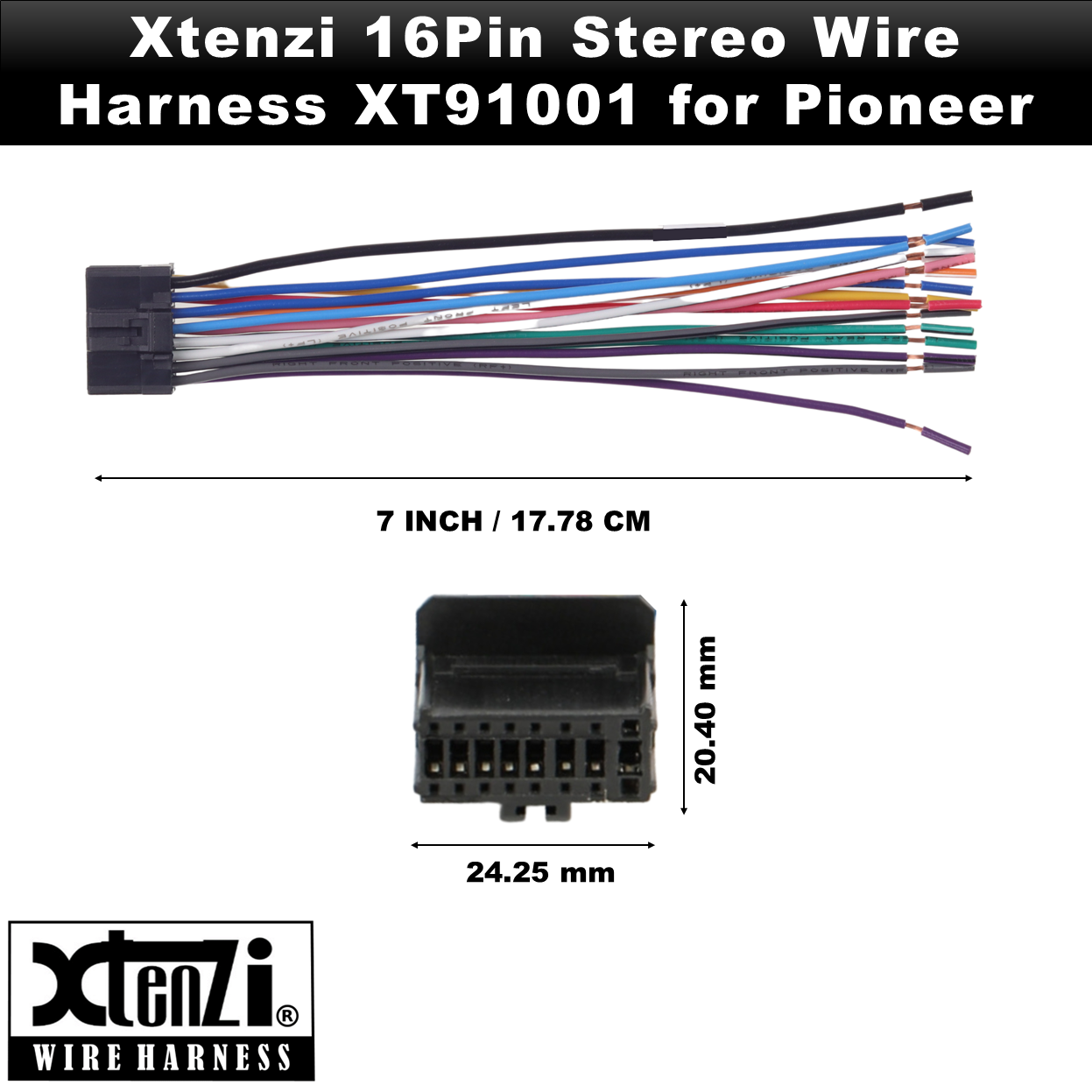

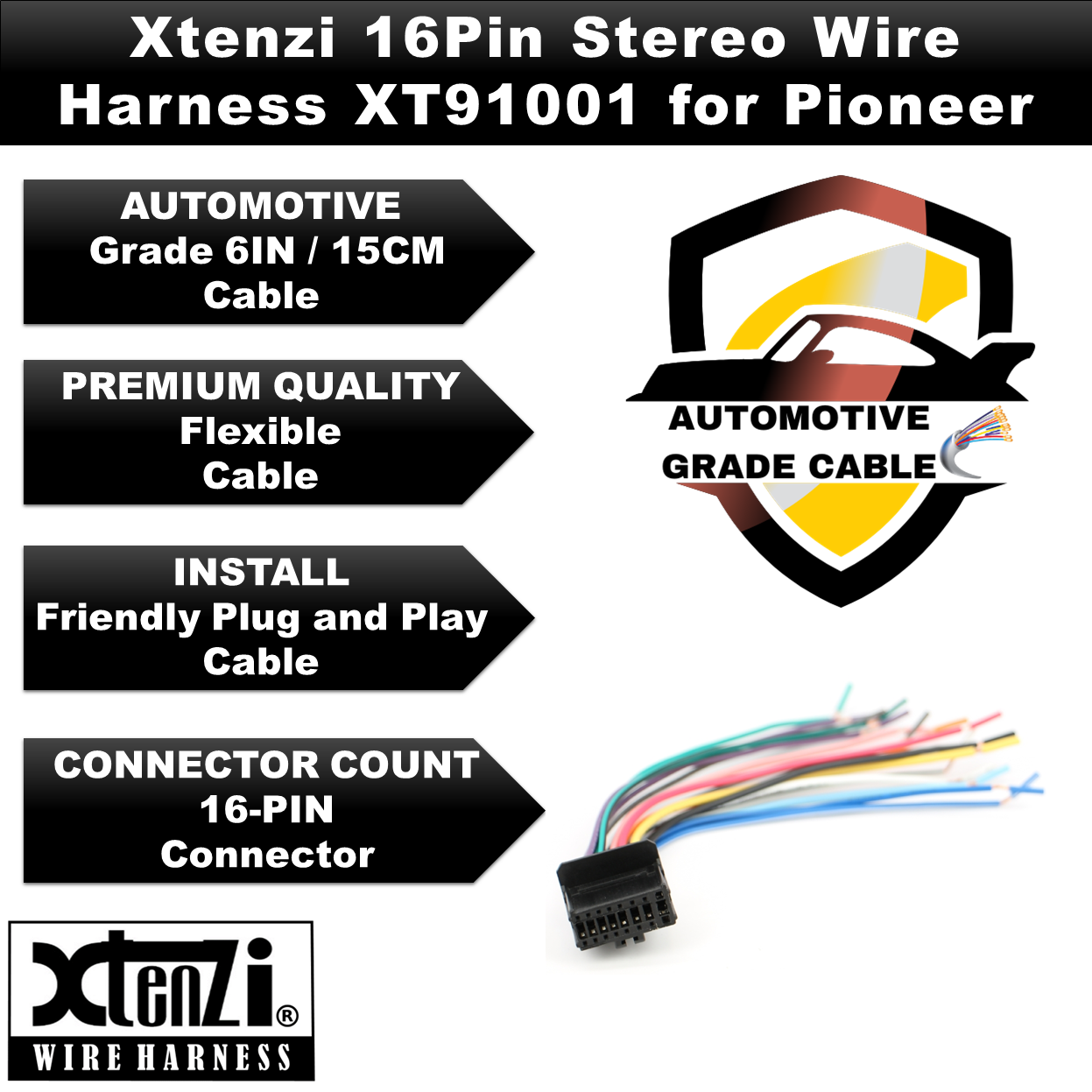

Technical Harness Specs:
- Brand = Xtenzi
- Wire length = 6 inch
- Warranty = One year

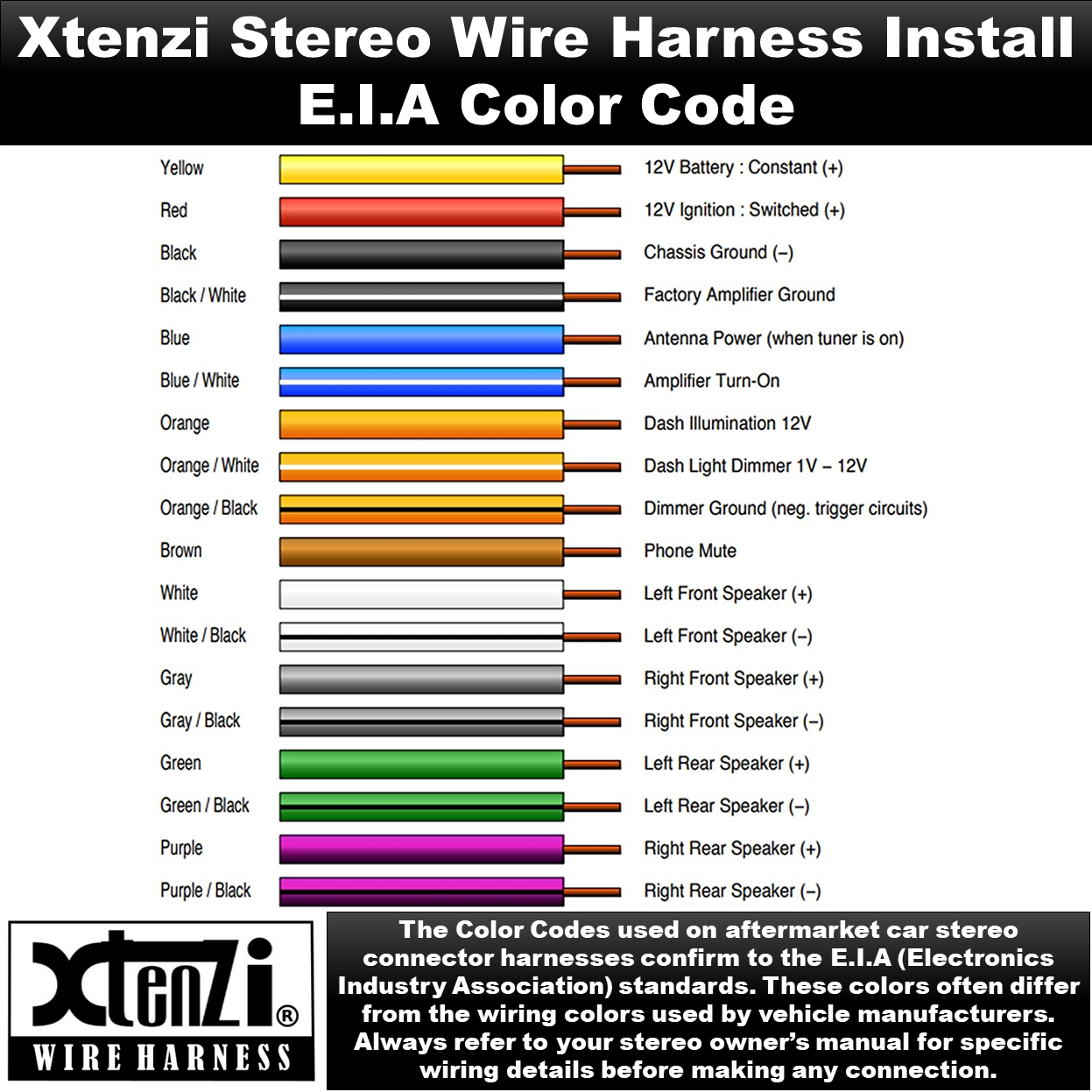

Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us
- Wire harness For Radio/Stereo – Qty 1PCS.
