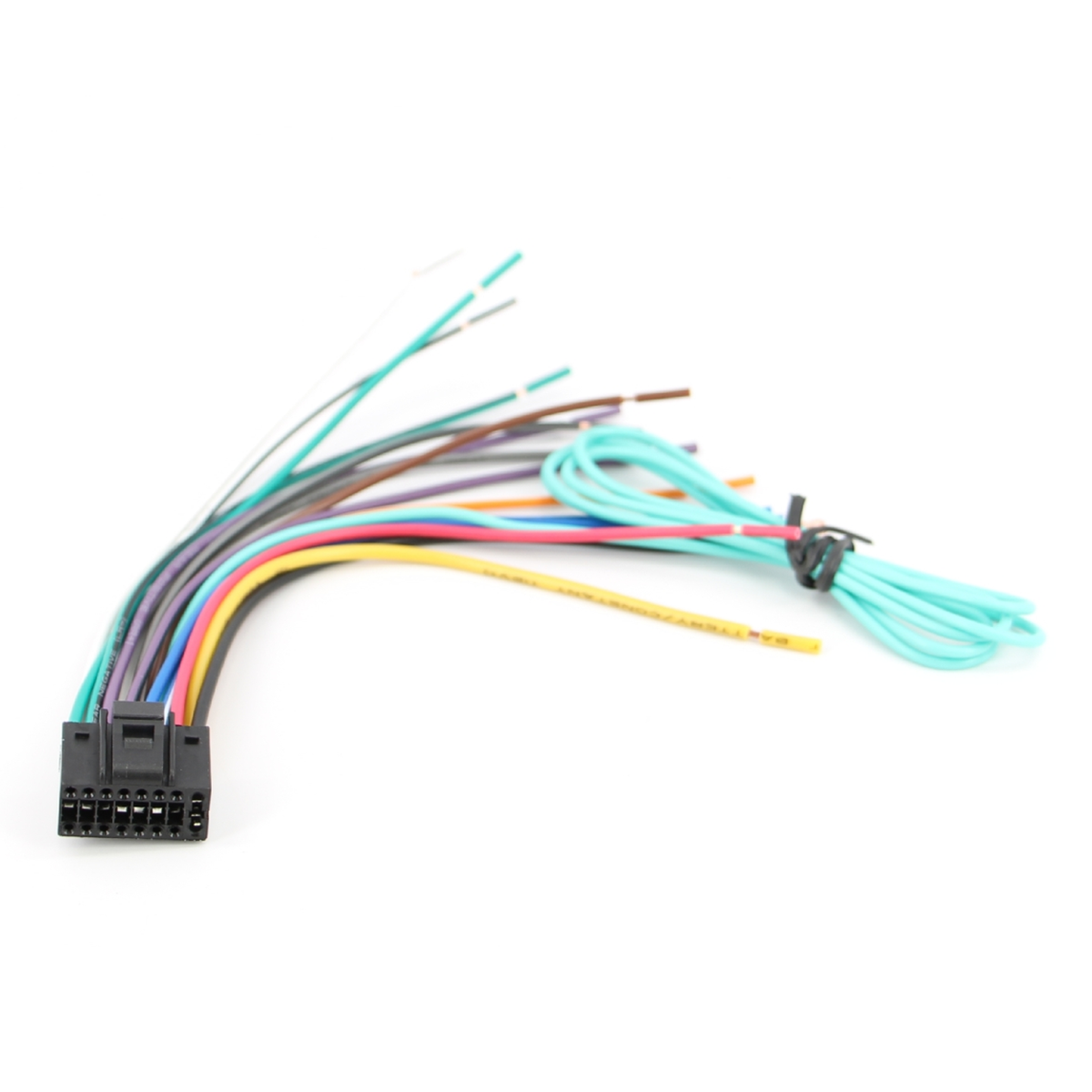

Xtenzi Wire Harness Radio for JVC 16 Pin Original Head Unit
- Product SKU: 91021
- Order within
When replacing your Aftermarket Harness or missing Harness, the Xtenzi wire harness is a must for a quick and clean installation. It Help to install aftermarket stereo with ease. After connecting it, your install is simple as the wires will color-match according to function.
Xtenzi brand wire harness made to work as replacement for your JVC Stereo Receivers radio.
Compatible models with ref to function and compatibility:
JVC: QAM0397-002, QAM0675-001, QAM1173-001
LENGTH: 7'' (in) LONG
PLUG STYLE: MOLEX
System Volts: 12 V
Some new models listed below that are compatible to this harness,
Replacement JVC wiring harness for
DOUBLE DIN's, KD-WC777, KW-XC777
CASSETTE DECKS, KS-FX100, KS-FX190, KS-FX200,
KS-FX230, KS-FXS00, KS-FX430, KS-FX490
ARSENAL SERIES, KD-AR3000, KD-AR5000, KD-AR800,
KD-AR600, KD-ARS00, KD-AR400, KD-AR300, KD-AR200
CD/MP3 RECEIVERS, KD-S550, KD-S570, KD-S580,
KD-S590, KD-5590, KD-S690, KD-S790, KD-S890,
KD-S990, KD-S620, KD-S6250, KD-S6350, KD-S640,
KD-S670, KD-S680, KD-5680, KD-S7350, KD-SX770,
KD-SX780, KD-SX840, KD-SX940, KD-5X770,
KD-SX980, KD-LH1000, KD-LH2000, KD-G700,
KD-G800, KD-G400, KD-G300, KD-S5050
Technical Harness Specs:
- Brand = Xtenzi
- Wire length = 6 inch
- Warranty = One year
Connections: E.I.A. Color Code
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us
- Wire harness For Radio/Stereo – Qty 1PCS.
