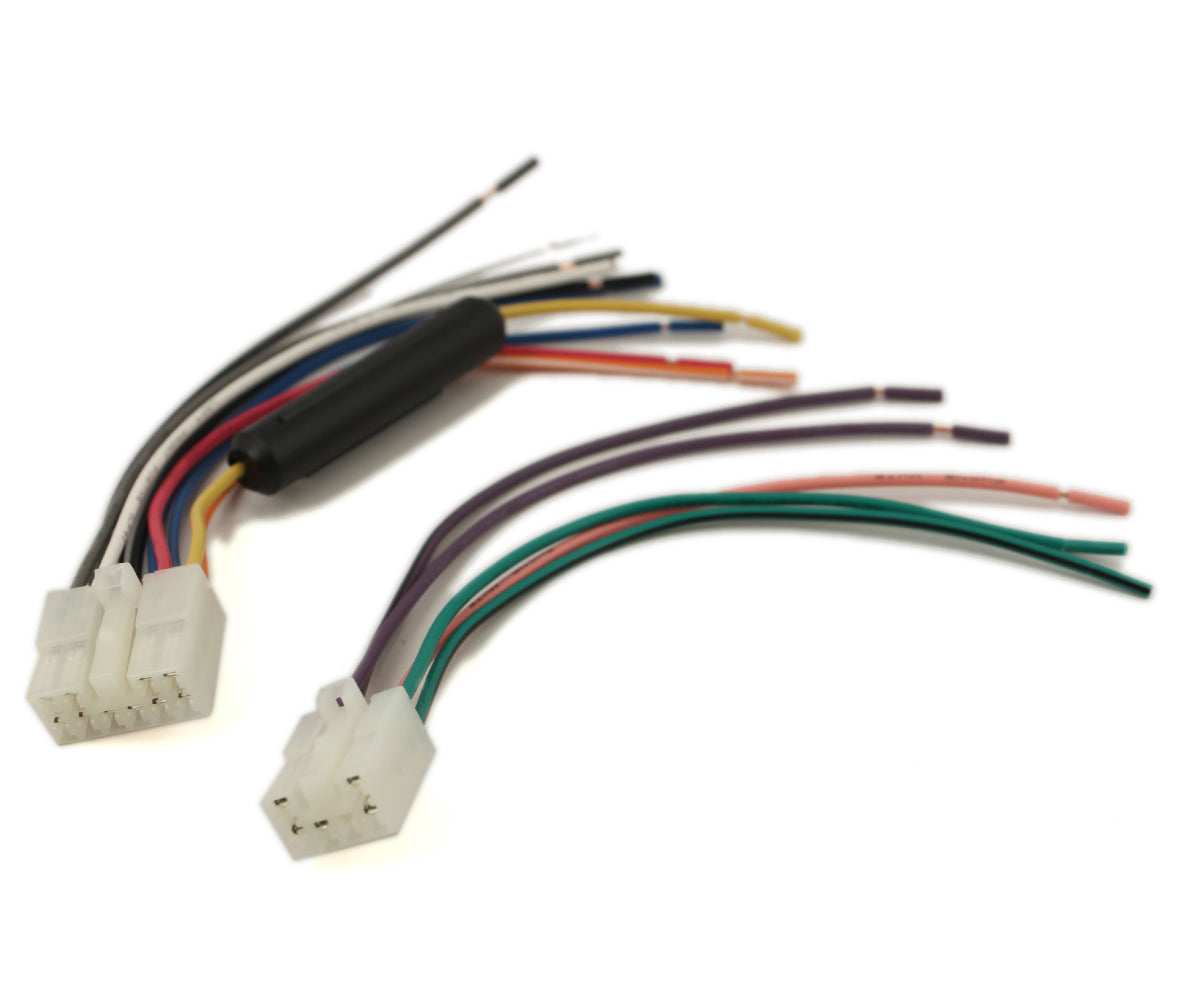

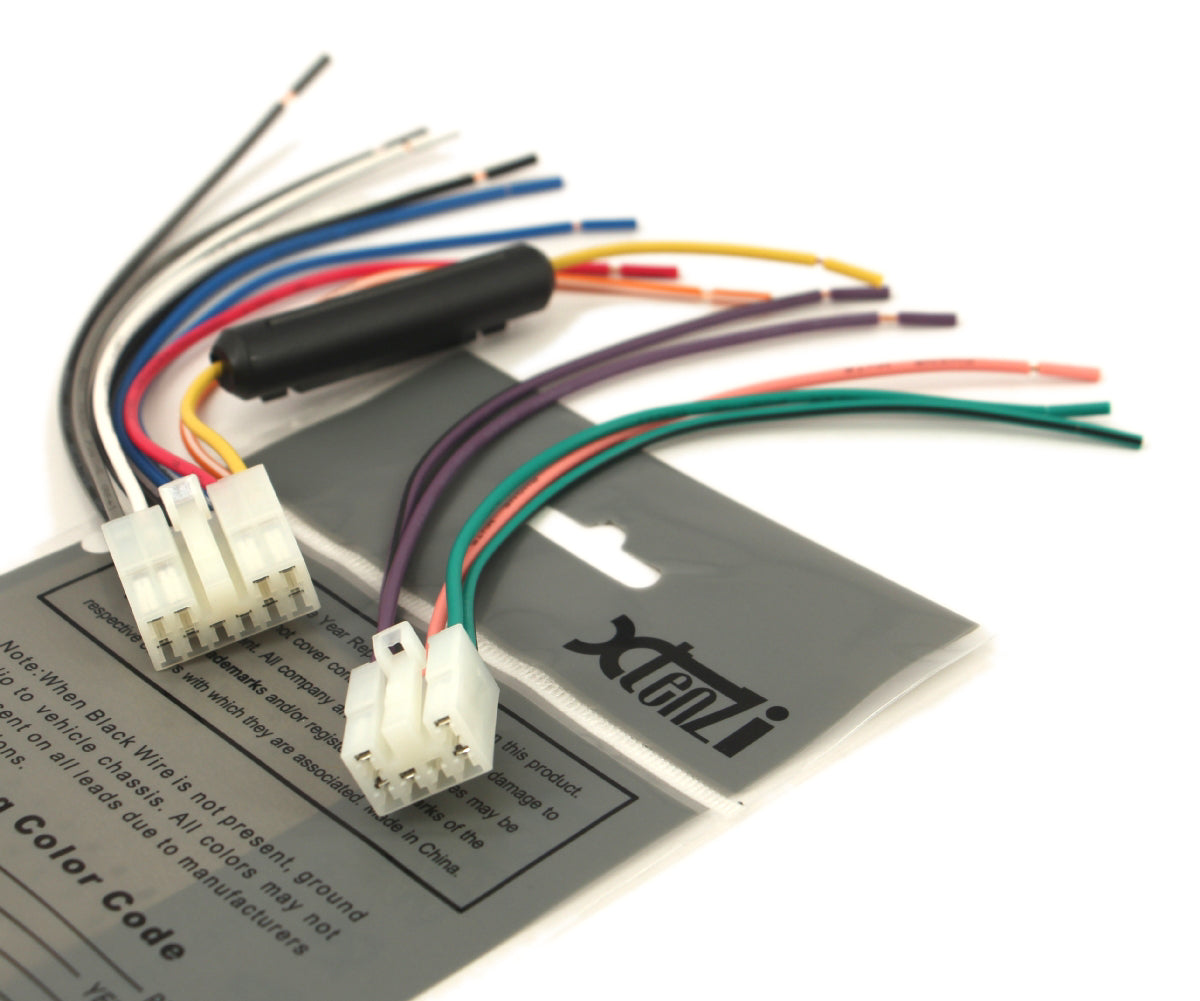

Xtenzi Wire Harness Radio for Eclipse EC-01 with Fuse

Description:

When replacing your Aftermarket Harness or missing Harness, the Xtenzi wire harness is a must for a quick and clean installation. It Help to install aftermarket stereo with ease. After connecting it, your install is simple as the wires will color-match according to function.

Xtenzi brand wire harness made to work as replacement for your Eclipse Stereo Receivers radio.

Compatibility:
Some new models listed below that are compatible to this harness,
AVN2210P, AVN2454, AVN4430,
AVN5435, AVN5500, AVN6600,
AVN6610, AVN6620

Technical Harness Specs:

• Brand = Xtenzi
• Wire length = 6 inch
• Warranty = One year

Connections: E.I.A. Color Code

Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us

Package Includes:

• Wire harness For Radio/Stereo – Qty 1PCS.

Please see the diagram before you purchase if that seems to look like you radio fitting or you can ask
