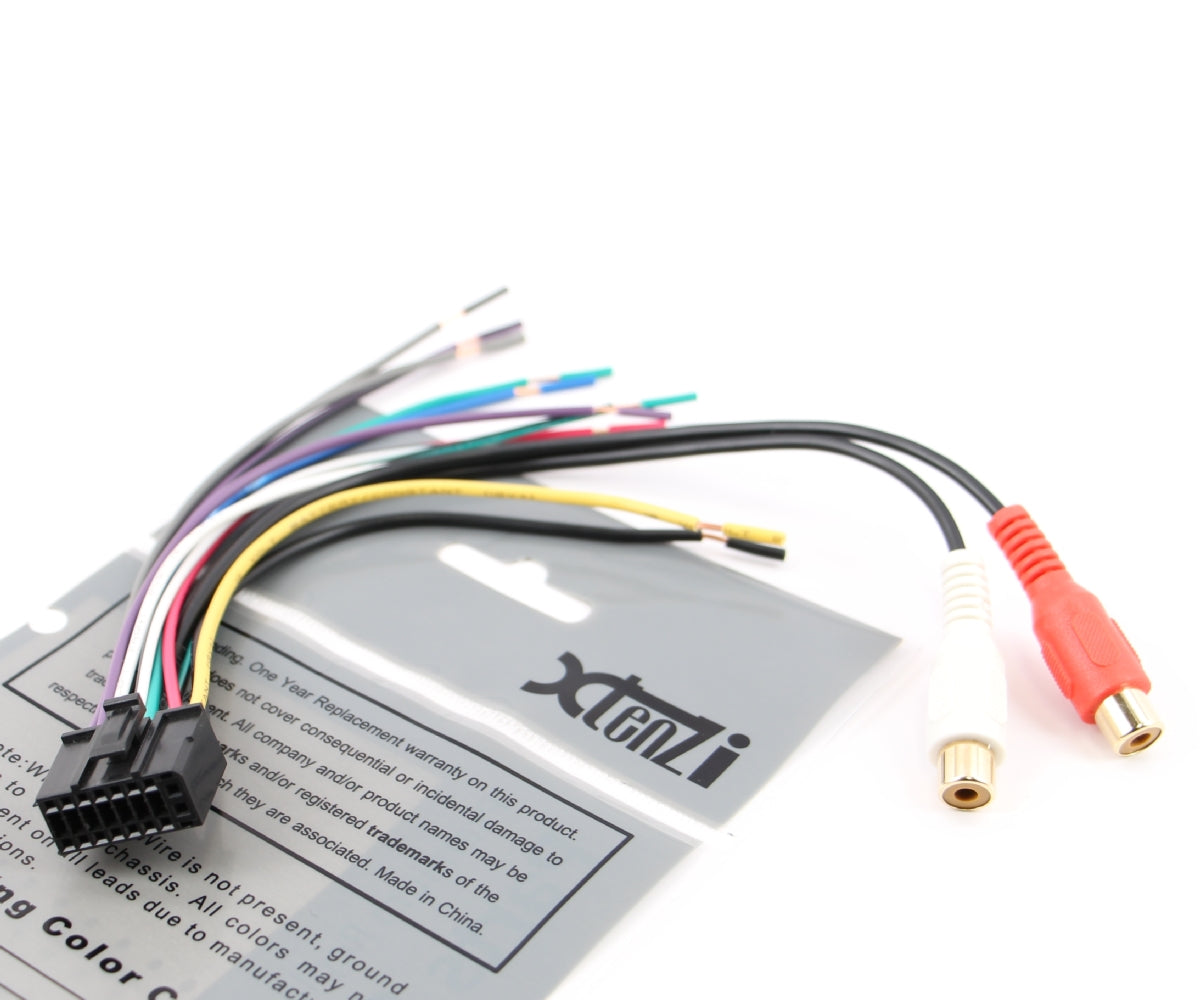

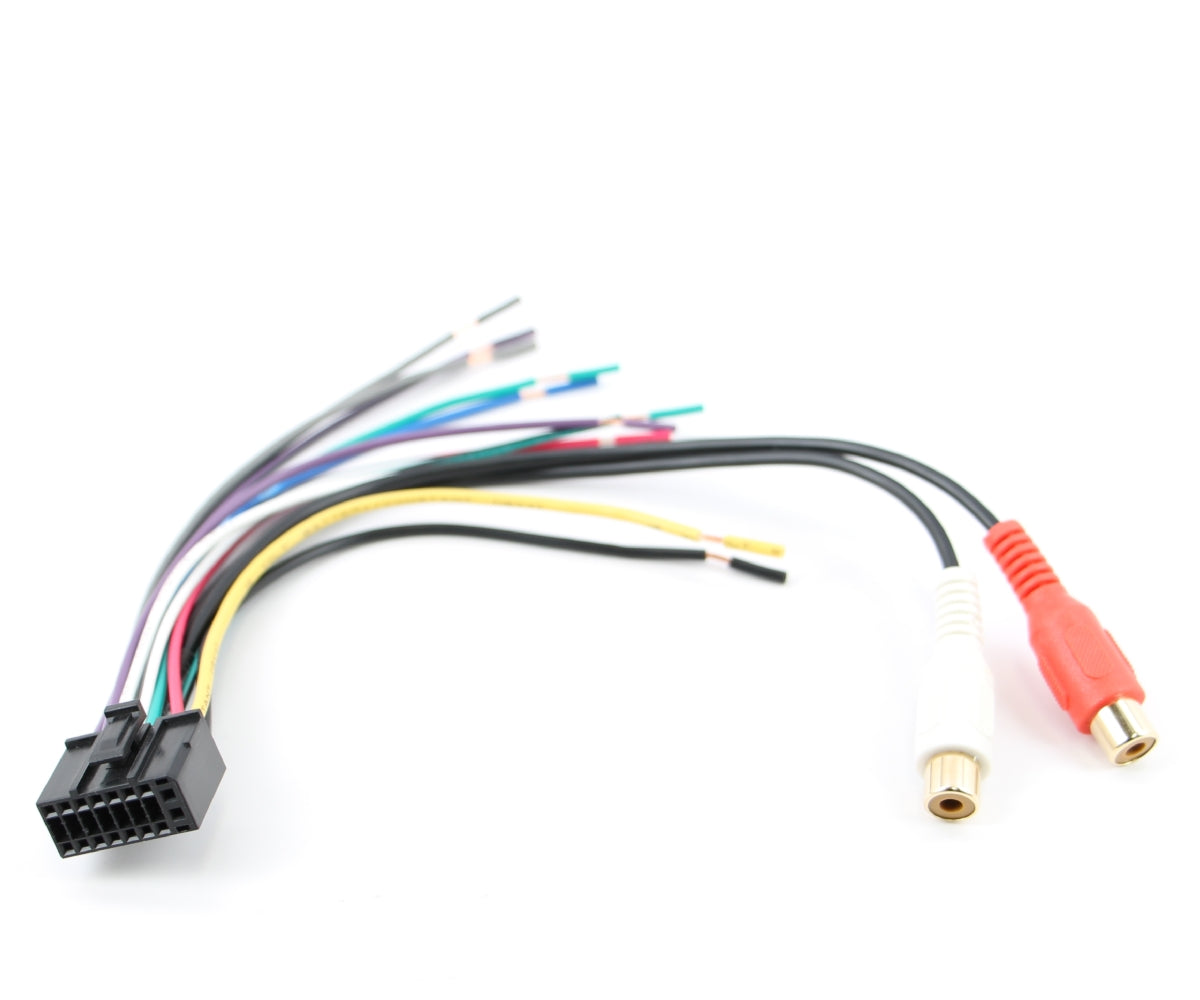

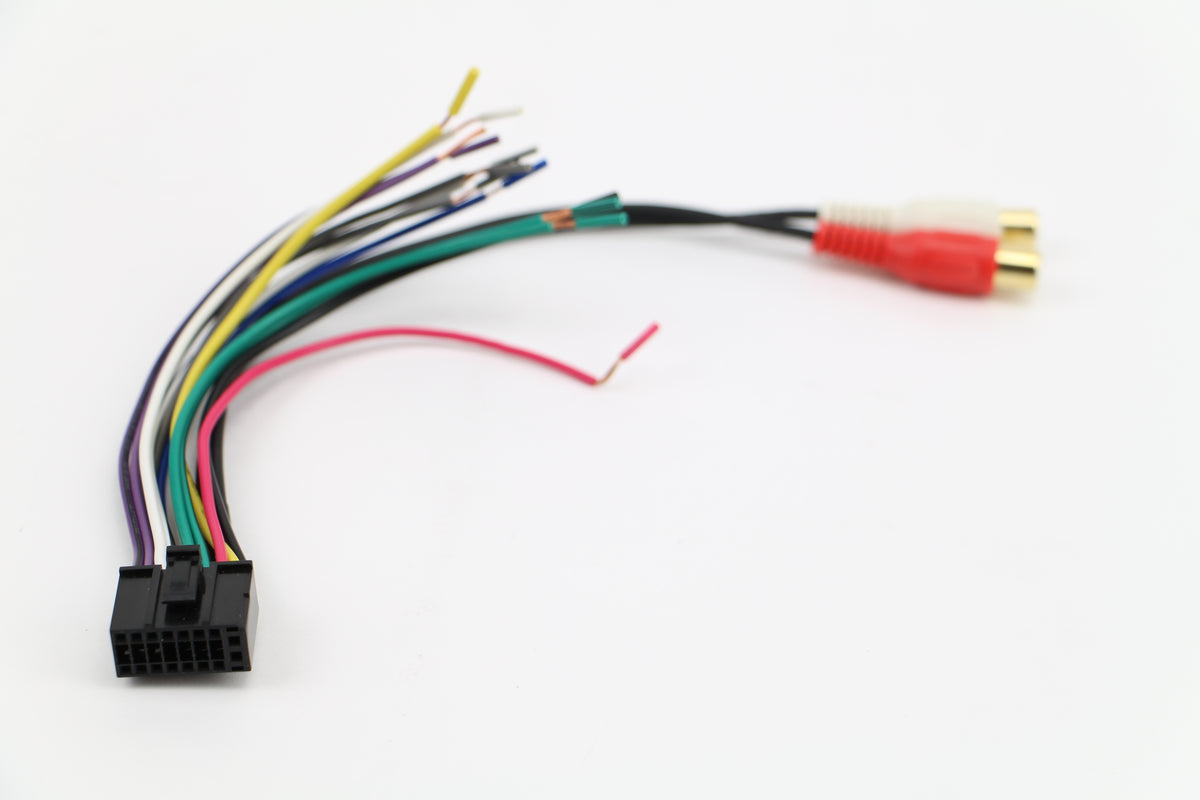

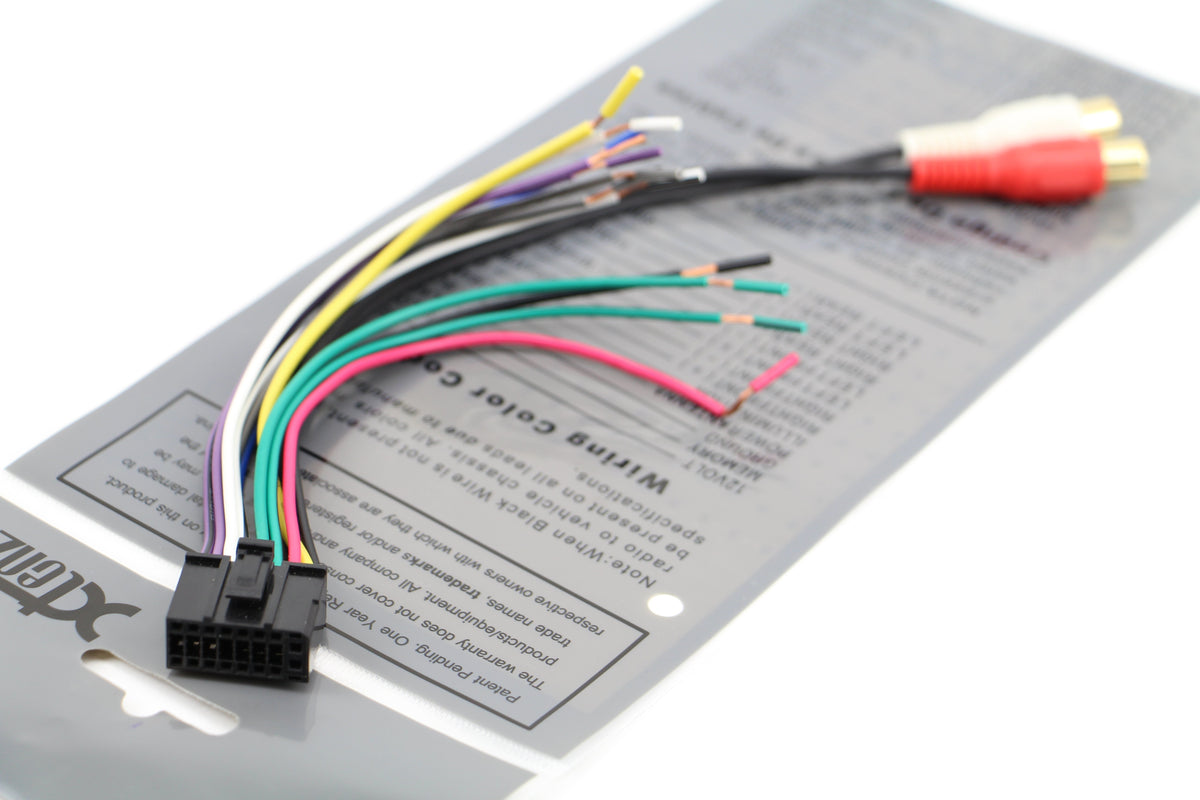

Xtenzi Wire Harness Radio for Dual 16 Pin XD , XDH , XDMA , XDM , XDMR Type D with RCA
- Product SKU: 91049
- Order within
When replacing your Aftermarket Harness or missing Harness, the Xtenzi wire harness is a must for a quick and clean installation. It Help to install aftermarket stereo with ease. After connecting it, your install is simple as the wires will color-match according to function.
Xtenzi brand wire harness made to work as replacement for your Dual Stereo Receivers radio.
Some new models listed below that are compatible to this harness,
XD7600, XDM6820, XDM6400,
XDMR7710, XHD7720, XDM6825,
XD7500, XDMA6370, XDMA6510,
XHD6420, XHD6430, XDM7510,
XDMA7715, XDMA6855, XDM7615,
XHD6420, XDM6830, XDM7610,
XDM6825, XD6320, XDMR6850
Technical Harness Specs:
- Brand = Xtenzi
- Wire length = 6 inch
- Warranty = One year
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us
- Wire harness For Radio/Stereo – Qty 1PCS.
