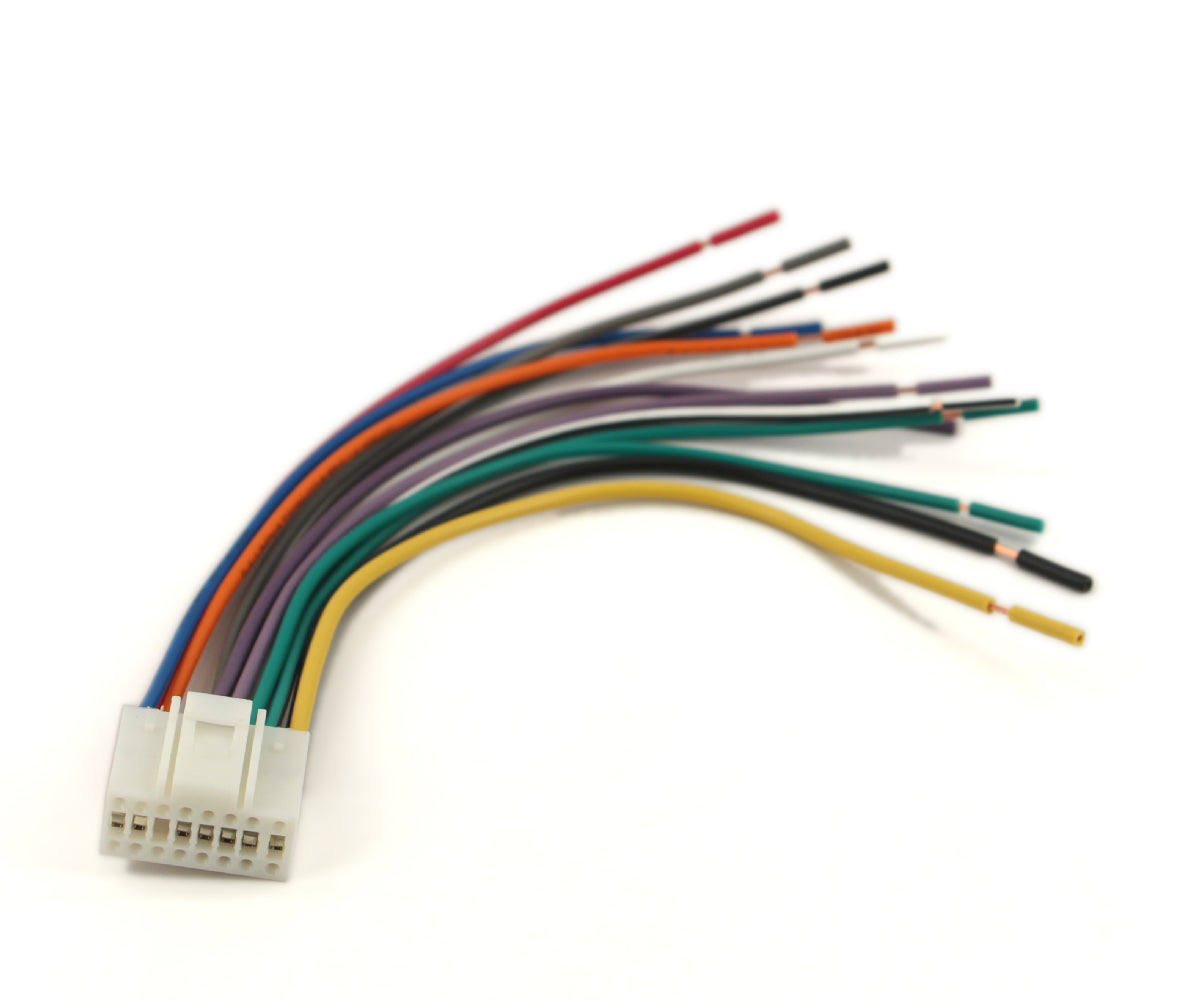

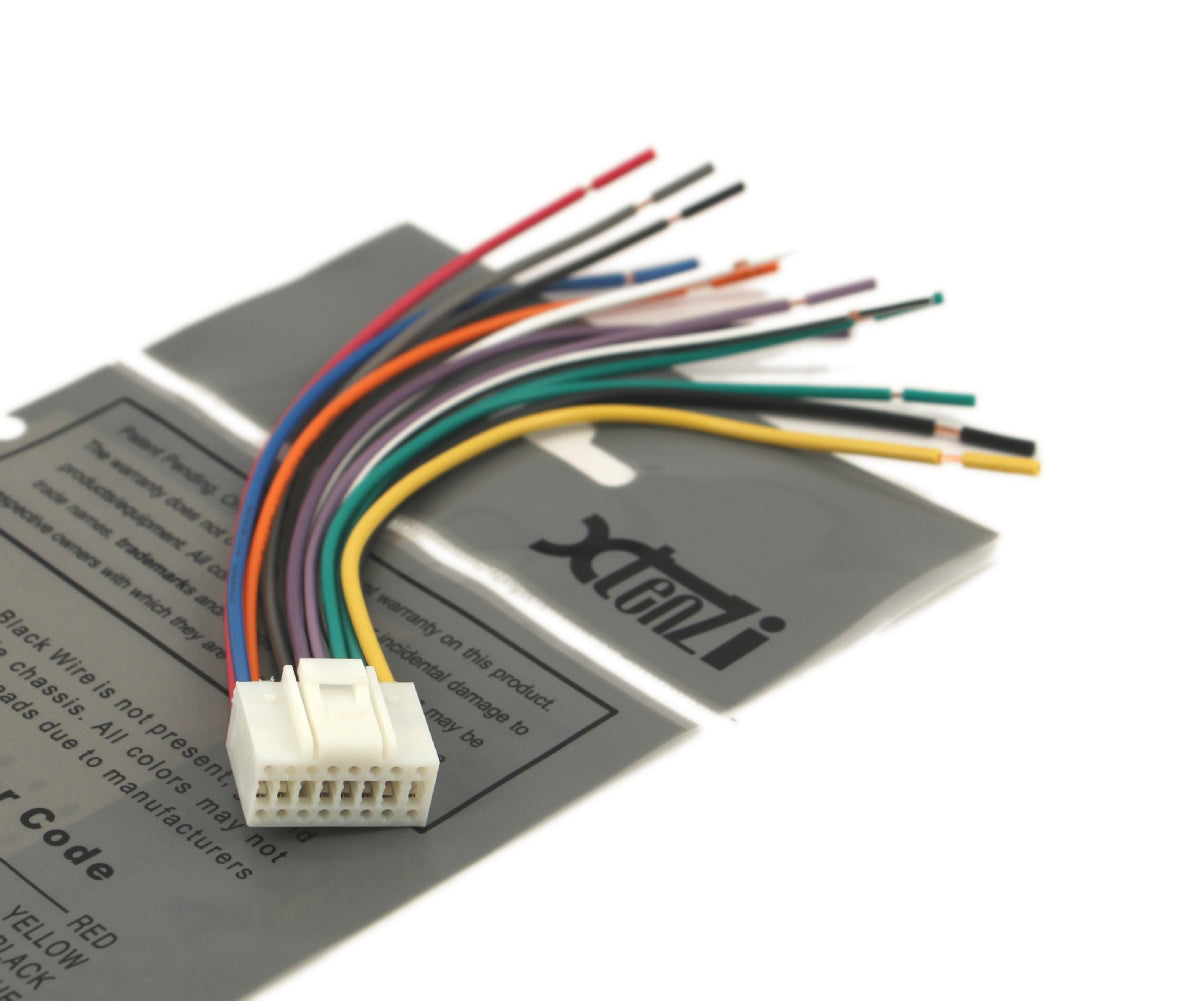

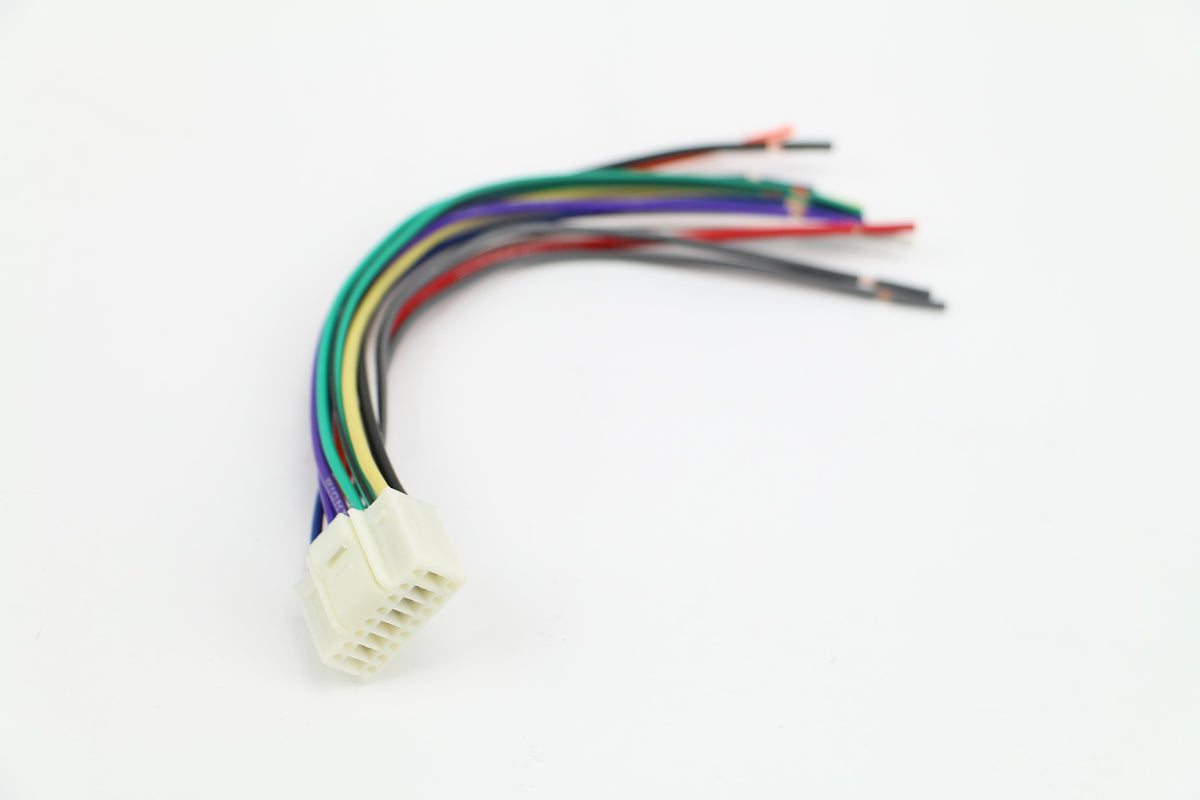

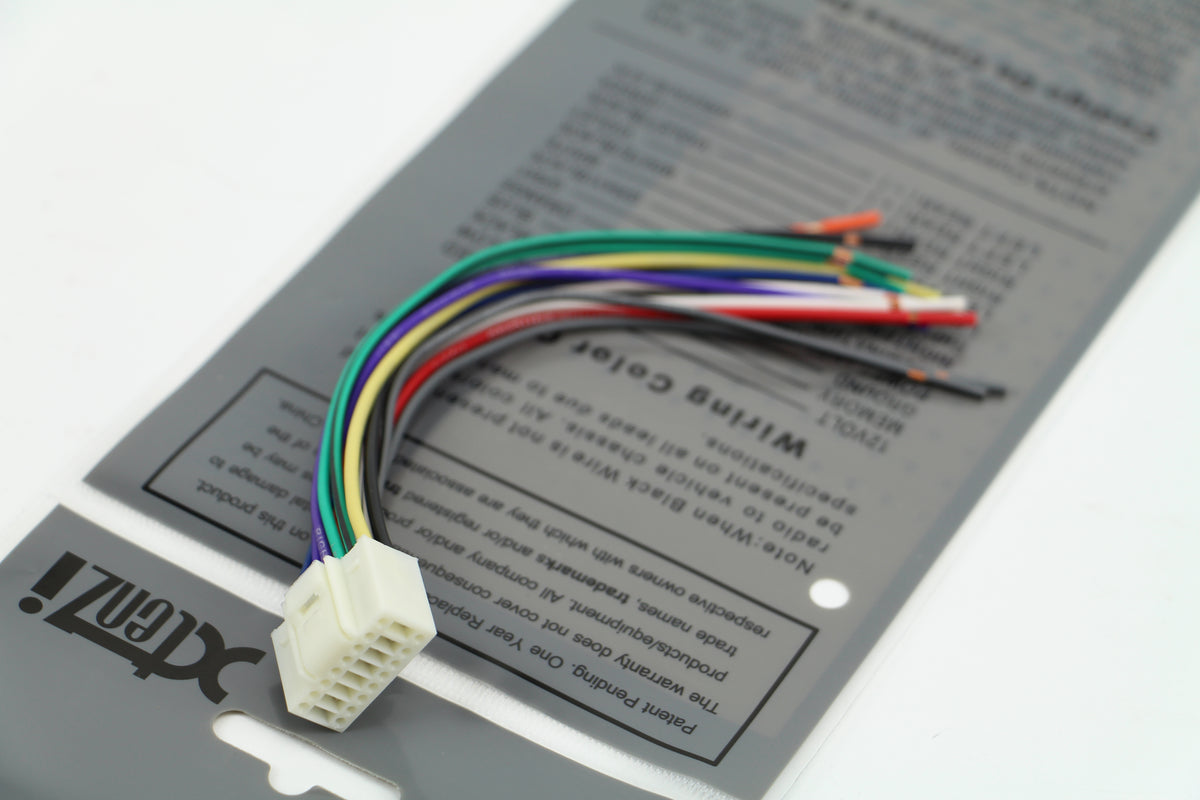

Xtenzi Wire Harness Radio for Alpine AL1604B White SKAL1604-21

Description:

When replacing your Aftermarket Harness or missing Harness, the Xtenzi wire harness is a must for a quick and clean installation. It Help to install aftermarket stereo with ease. After connecting it, your install is simple as the wires will color-match according to function.

Xtenzi brand wire harness made to work as replacement for your Alpine Stereo Receivers radio.

Compatible models : Function and compatibility with following popular brand parts no,
Alpine Part no: CDE , CDA , CDM, TDM
LENGTH : 6'' (in) LONG,
PLUG STYLE :.Molex FeMale 16pin White
System Volts : 12 V

Compatibility:

Some new models listed below that are compatible to this harness,

CDE Units: CDE-7820, CDE-7825, CDE-7826, CDE-7826P,
CDE-7828, CDE-7830, CDE-7830S, CDE-7831, CDE-7853,
CDE-7854, CDE-785S, CDE-7870, CDE-7856, CDE-7859,
CDE-7872, CDE-9803,

CDA Units: AI-Net CDA-7831, CDA-7838, CDA-7839,
CDA-7845, CDA-7878, CDA-9805, CDA-9807, CDA-9811,
CDA-9823, CDA-9825, CDA-9827, CDA-D857 1.5 din

CDM Units: M-BUS, CDM-7829, CDM-7833, CDM-7835,
CDM-7857, CDM-7861, CDM-7871, CDM-7874, CDM-787S,
CDM-9801, CDM-9803, CDM-9811, CDM-9821, CDM-9823, CDM-9825

Technical Harness Specs:

• Brand = Xtenzi
• Wire length = 6 inch
• Warranty = One year

Connections: E.I.A. Color Code
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us

Package Includes:

• Wire harness For Radio/Stereo – Qty 1PCS.

Please see the diagram before you purchase if that seems to look like you radio fitting or you can ask
