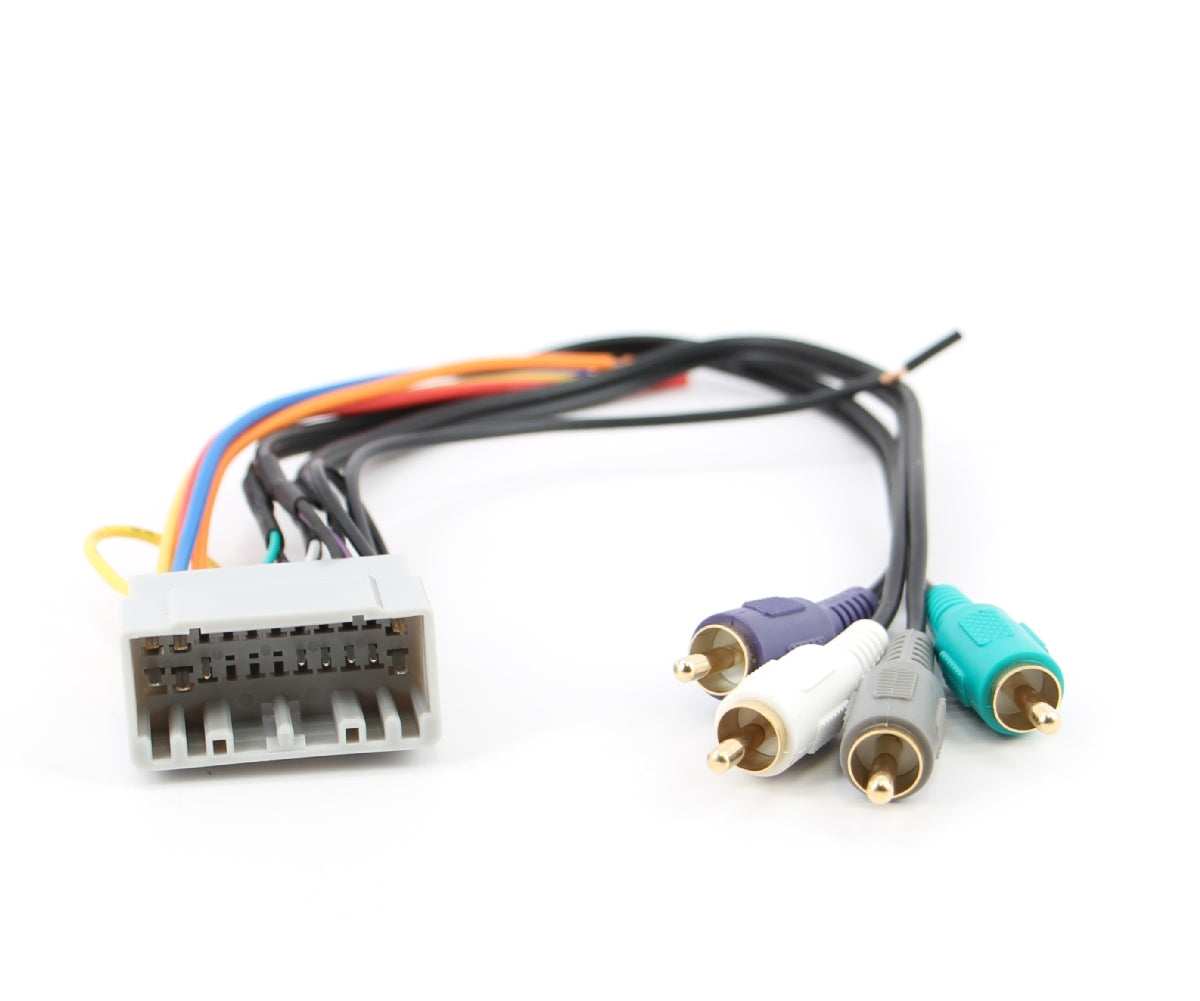

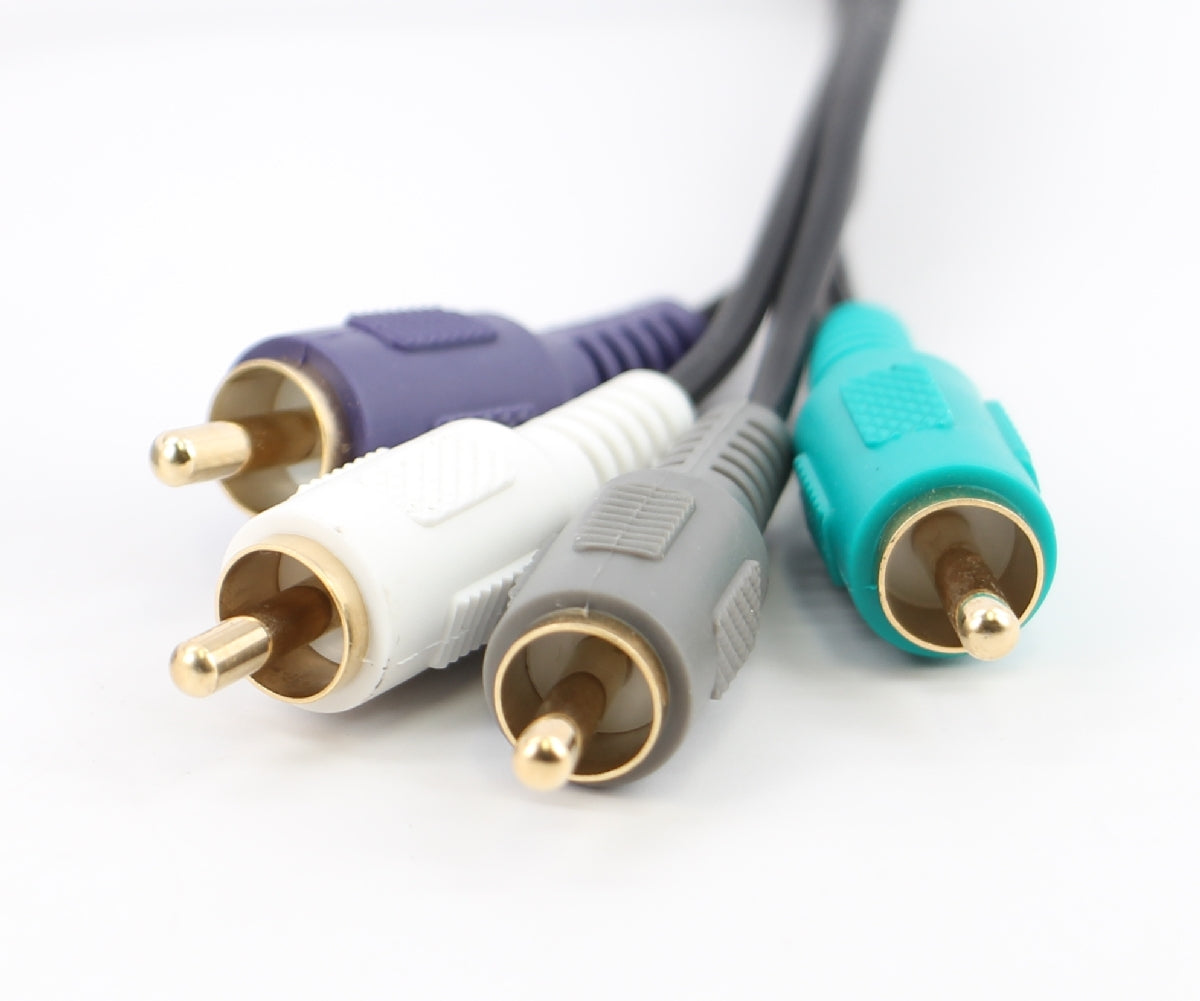

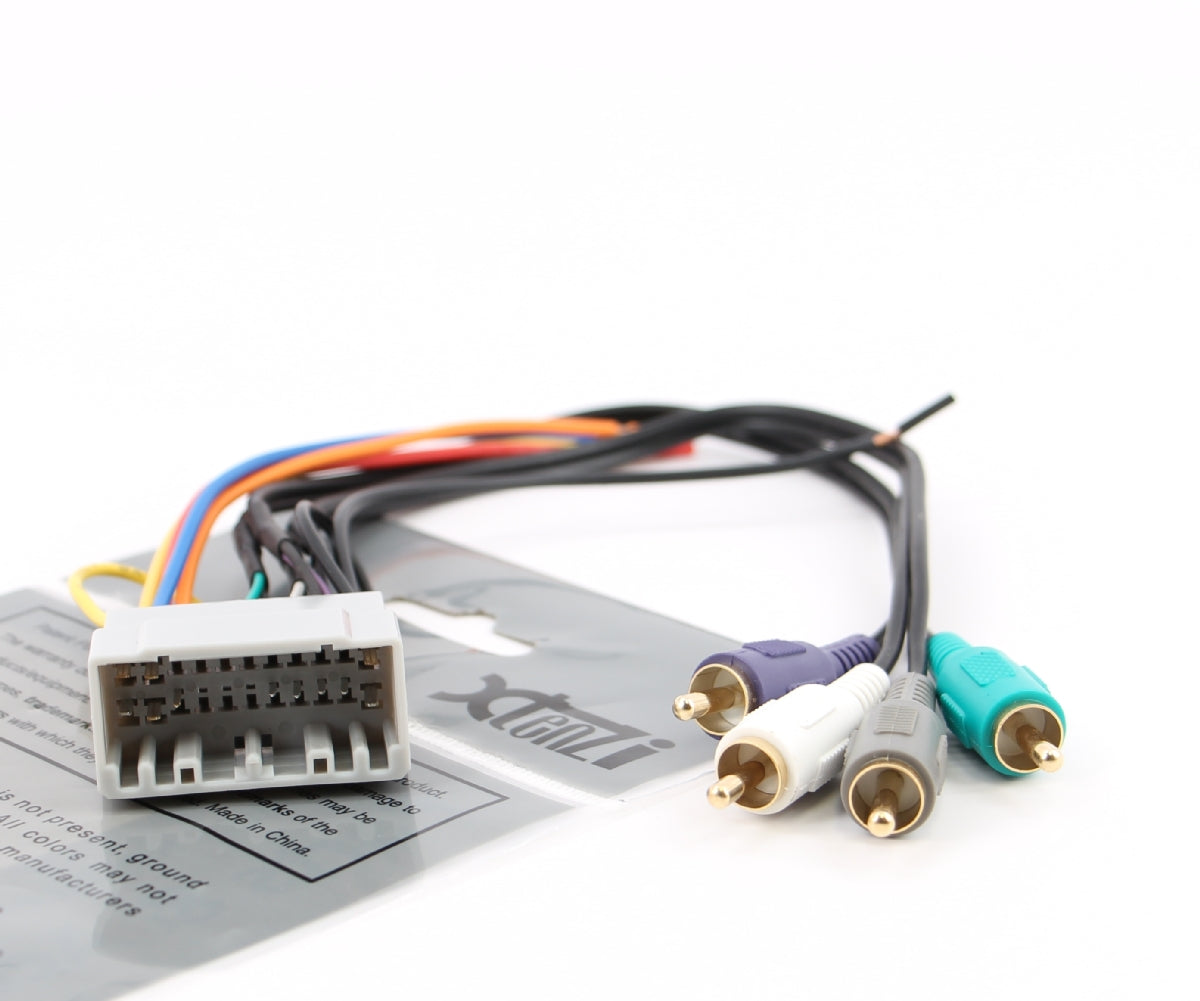

Xtenzi Wire Harness for Chrysler 2002-2009 6502RCA-70
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020

Xtenzi Wire Harness for Chrysler 2002-2009 6502RCA-70

Available:In Stock
  • Product SKU: 6502RCA-11
$9.99 USD
  • Order within


When replacing your factory radio with an after-market car stereo, the Xtenzi wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the Xtenzi Harness, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, This harness allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver.

Technical Harness Specs:

Brand = Xtenzi
Wire length=8inch
Interchange Part Numbers
( Metra 70-6502RCA )
(Scoche XXXXX )
(BestKits BHA6502RCA )

Connections: E.I.A. Color Code
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us

Compatibility List:
This Harness will work with Select make and model,
CHRYSLER 300M 2002 2004
CHRYSLER Concorde 2002 2004
CHRYSLER Pacifica 2004 2008
CHRYSLER PT Cruiser 2002 2005
CHRYSLER Sebring Convertible 2002 2006
CHRYSLER Sebring Sedan 2002 2005
CHRYSLER Town & Country 2002 2007
CHRYSLER Voyager 2002 2003
DODGE Caravan 2002 2007
DODGE Dakota 2002 2004
DODGE Durango 2002 2003
DODGE Intrepid 2002 2004
DODGE Neon 2002 2006
DODGE Ram Pickup 1500 2005 2005
DODGE Ram Pickup 1500 2002 2004
DODGE Ram Pickup 2500/ 3500 2003 2005
DODGE Stratus Sedan 2002 2006
DODGE Viper 2003 2009
JEEP Grand Cherokee 2002 2004
JEEP Liberty 2002 2007
JEEP Wrangler 2003 2006

Package Included:

  • Wire harness Plug Car/Vehicle - Qty 1PCS.

Please note these harnesses are designed to be a replacement for the original factory harness. And they are only designed to work on Factory radios which are NOT 'factory amplified' or 'premium sound' models. Although they may still fit these radios, we're unable to offer any form of assistance or support when purchasing this for 'premium sound radios' and often times they won't even connect to premium sound radios/systems without additional parts or OEM sound Amplifiers.
