Xtenzi GPS Antenna XT91823 for Rosen DE-GM1010 DS/DE-GM1010 GM1010-P11 DS-HY1120

Key Features:

• Compatibility: Xtenzi Premium Quality Active GPS Antenna XT91823 compatible with Rosen Select Models DE-GM1010 DS/DE-GM1010 GM1010-P11 DS-HY1120 DP-1022
• 15 FT GPS Antenna: GPS Active Antenna with SMA connector and RG174 Cable to install both Internal and External. Cable length is 15feet / 5meters.
• Active GPS Antenna: High Quality Replacement Active GPS Antenna will boost the signal at 28 dB of gain with its built in LNA.
• Easy to Plugin and use: Easy to install magnetic base which can adhere to any metal surface, Ready to plugin and use. Helps your GPS to get stronger signal for indash NAV.
• Automotive Design: Fully waterproof, Excellent temperature stability, compact construction, Low profile, and low noise automotive grade cable.
• Ideal GPS Antenna: Ideal Replacement for lost or damaged original antenna or retrofitting a new system and do not have a GPS Antenna.

Product Description:

Xtenzi brand replacement GPS Antenna compatible with Select Rosen Entertainment units. A premium quality waterproof Active GPS Antenna increases your signal with its built-in low noise amplifier upto 28dB. The magnetic base allows you to conveniently attach it to the roof of your vehicle.

Compatible with Models:

Select Models:

• DS/DE-GM1010
• DE-GM1010
• GM1010-P11
• DS-HY1120
• DP-1022
• GM0710-N11
• GM0714-N11
• DS-GM0714
• DS-GM0720-M11

Specifications:

• ­­­­­­­­­­­­­­­­­­­Brand Name: Xtenzi
• Model Number: XT91823
• Part Number: XT91823-GP03
• Cable Length: 5M / 15FT

Technical Specifications:

• Cable Type: RG174
• Cable Impedance: 50-Oham
• Connector Type: SMA / GP03
• Connector Color: Golden
• Cable Color: Black
• LNA Gain: 28dB
• Housing: Black
• Mounting: Strong Magnetic Base
• Weatherproof: 100% Waterproof
• Center Frequency: 1575.42MHz ± 3MHz
• Voltage: 3V to 5V
• DC Current: 10mA MAX

What is Included:

• 1PCS-Xtenzi GPS Antenna
• 1 X Install Guide

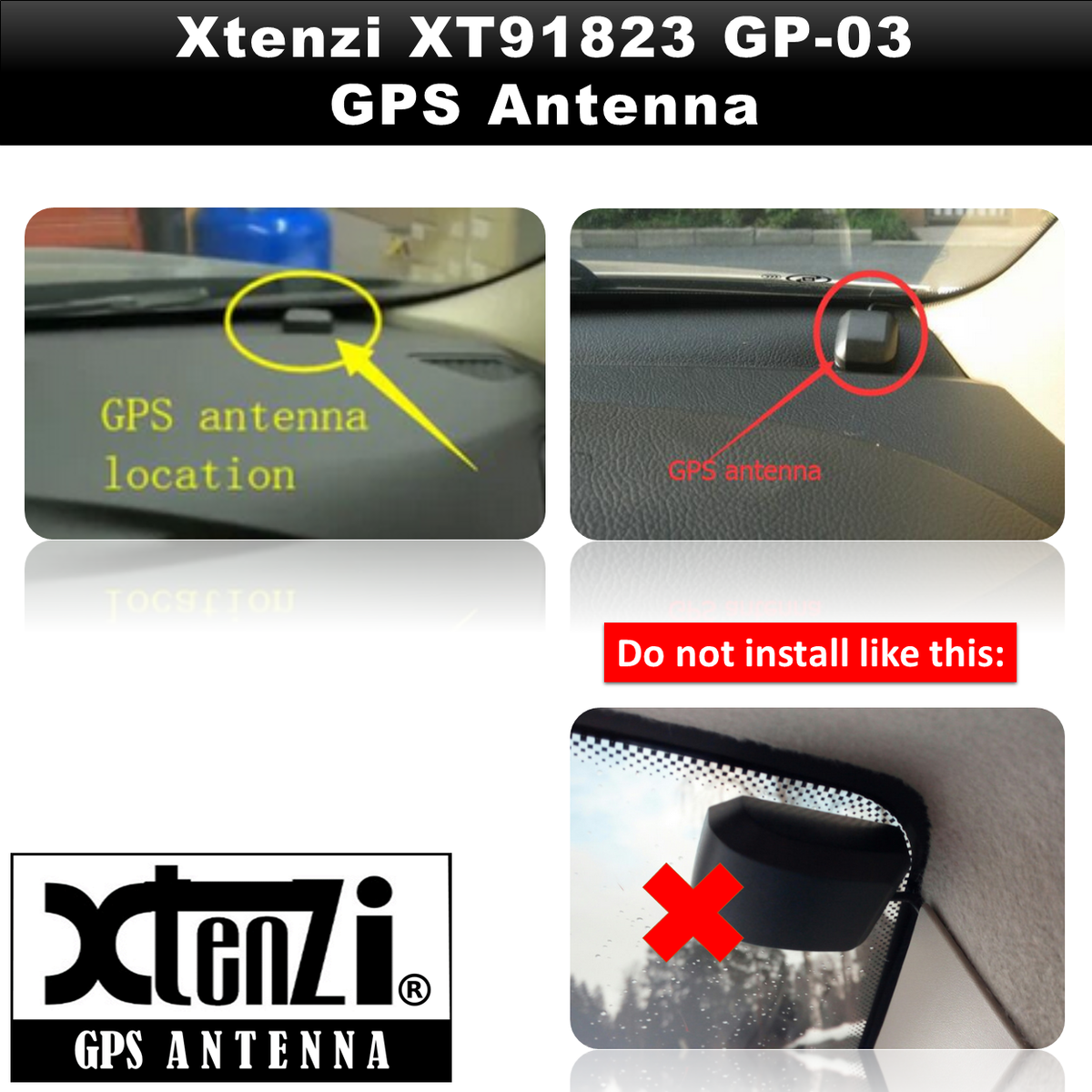

Installation: When installing GPS Antenna in a concealed position, make sure there is no metal above it. Install GPS Antenna with the magnetic base down. If your car windshield and windows are made of thermal glass, fix GPS Antenna on the roof or rear spoiler.
