Replace Install Wire Harness for 1995 - Up Mazda MX-5 Miata, 2, 3, 5, 6 ,626, CX-7, Millenia, Protege / 5, & RX8, Tribute
- Product SKU: 7902-11
- Order within
Key Features: XT7902-11
- Our premium quality wire harnesses help to install your aftermarket stereo with ease
- Designed to be a replacement for the original factory harness
- Pre-stripped to make installation quick and easy. Follow EIA color-coded and special wire function as per compatible model.
- Wire Length: 8 Inch
Thinking of replacing your aftermarket harness, then the Xtenzi wire harness is a must for a quick and clean installation. Our premium quality wire harnesses help to install your aftermarket stereo with ease. The Xtenzi harness eliminates cutting your OE radio plug and allows you to reinstall your factory receiver if necessary. After connecting the wire harness, your install is made simple with our E.I.A. color coded wires. Please note these harnesses are designed to be a replacement for the original factory harness. They are only designed to work on Factory radios which are NOT 'factory amplified' or 'premium sound' models. Although they may still fit these radios, we're unable to offer any form of assistance or support when purchasing this for 'premium sound radios' and often times they won't even connect to premium sound radios/systems without additional parts or OEM sound Amplifiers.
Compatible with the following Select Vehicles Models: (Only For REF, REC, and RAK Factory Radios)
- 2011 - 2013 Mazda 2
- 2004 - 2009 Mazda 3
- 2010 - 2013 Mazda 3
- 2006 - 2010 Mazda 5
- 2003 - 2008 Mazda 6
- 2009 - 2013 Mazda 6
- 1998 - 2003 Mazda 626
- 2007 - 2009 Mazda CX-7
- 2010 - 2011 Mazda CX-7
- 1995 - 2003 Mazda Millenia
- 2000 - 2006 Mazda MPV
- 2001 - 2005 Mazda MX-5 Miata
- 2006 - 2008 Mazda MX-5 Miata
- 2009 - 2013 Mazda MX-5 Miata
- 1999 - 2006 Mazda Protege / 5
- 2004 - 2008 Mazda RX8
- 2009 - 2011 Mazda RX8
- 2001 - 2007 Mazda Tribute
Brand Name: Xtenzi
Model Number: XT7902-11
Wire length: 8 Inch

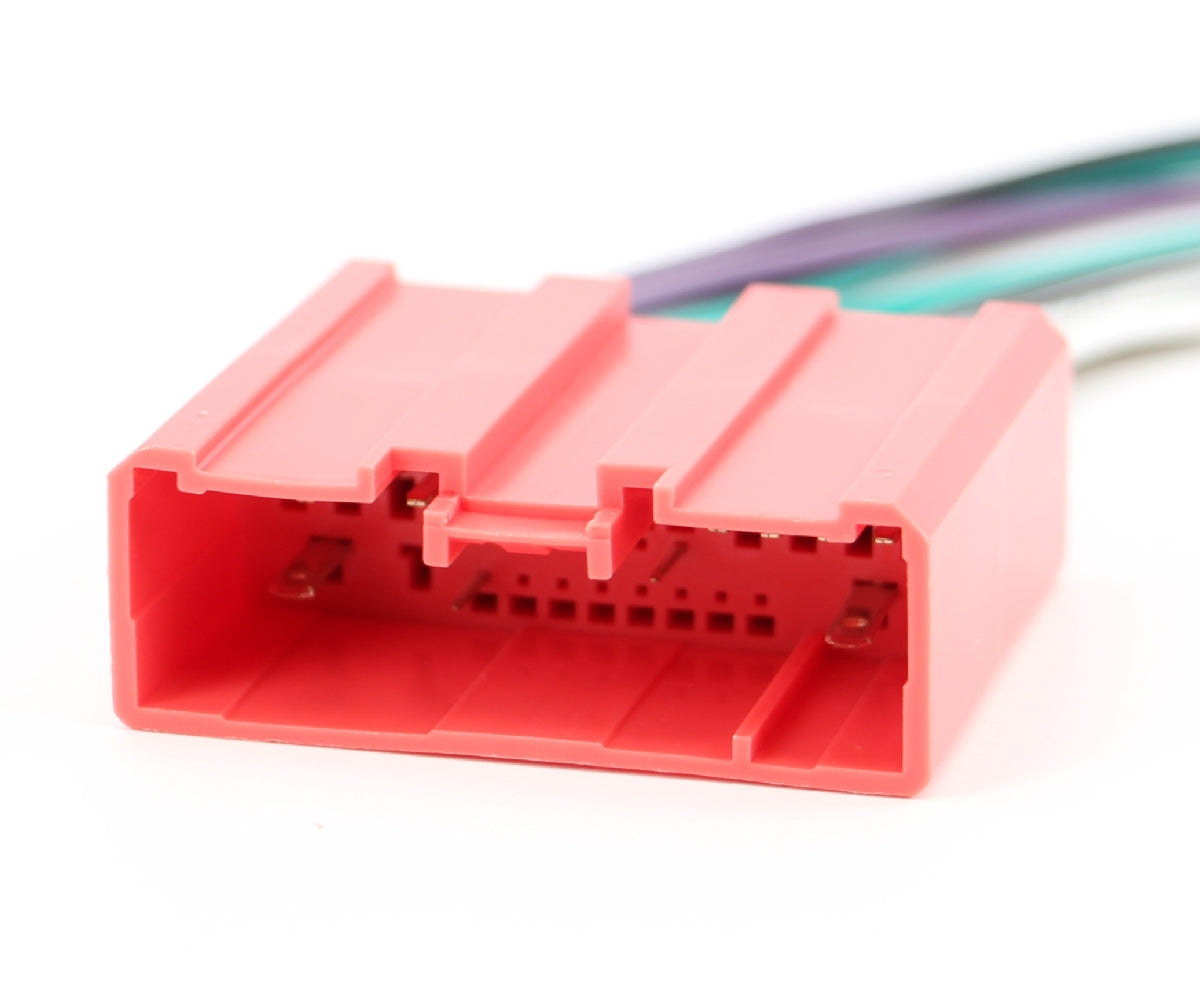

Connector no Of Pins: 22Pin.
What is Included within the Package:
1 x Xtenzi Wire Harness Harness
EIA-Wire Harness Connections:
- Yellow 12V Constant
- Red 12V Accessory
- Black - Ground
- Orange Dash Light Dimmer/Illumination
- Green Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White Left Front Speaker (+)
- White with Black Stripe Left Front Speaker (-)
- Purple Right Rear Speaker (+)
- Purple with Black Stripe Right Rear Speaker (-)
- Gray Right Front Speaker (+)
- Gray with Black Stripe Right Front Speaker (-)
* Some wire functions may be different, please read your Radio install guide carefully or ask an installer.
