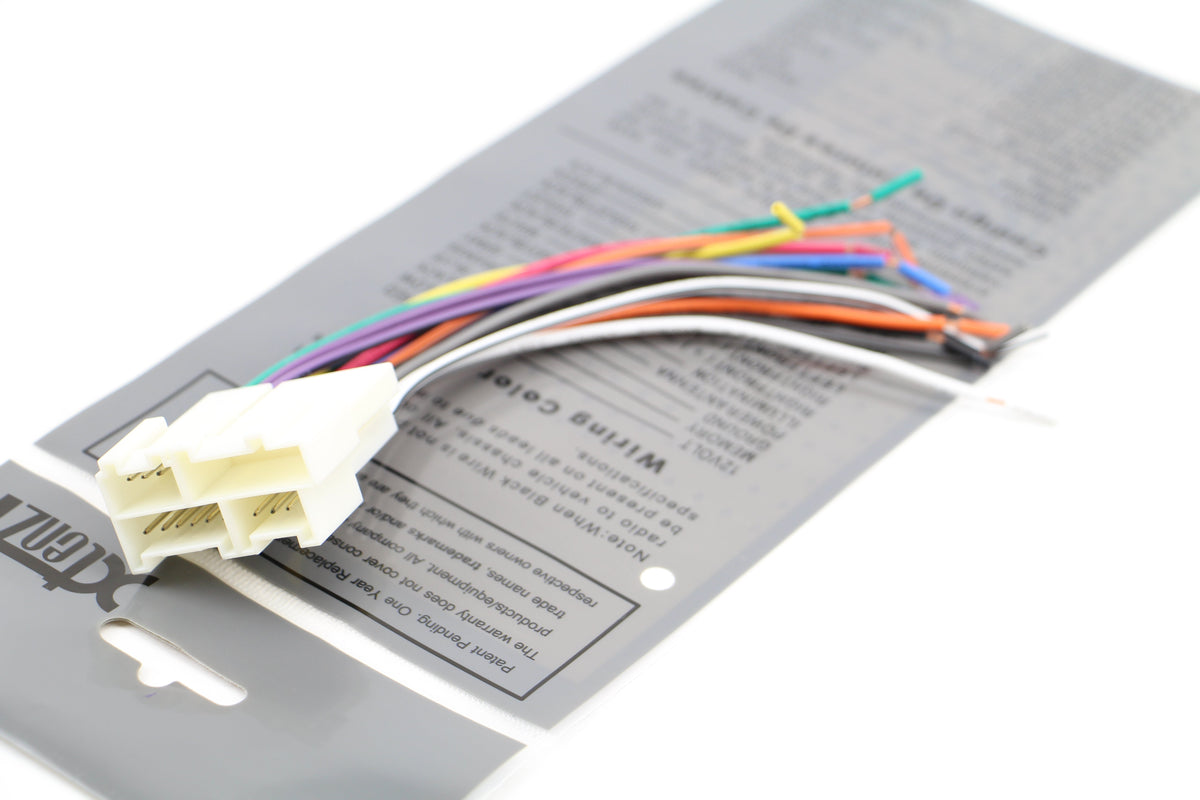

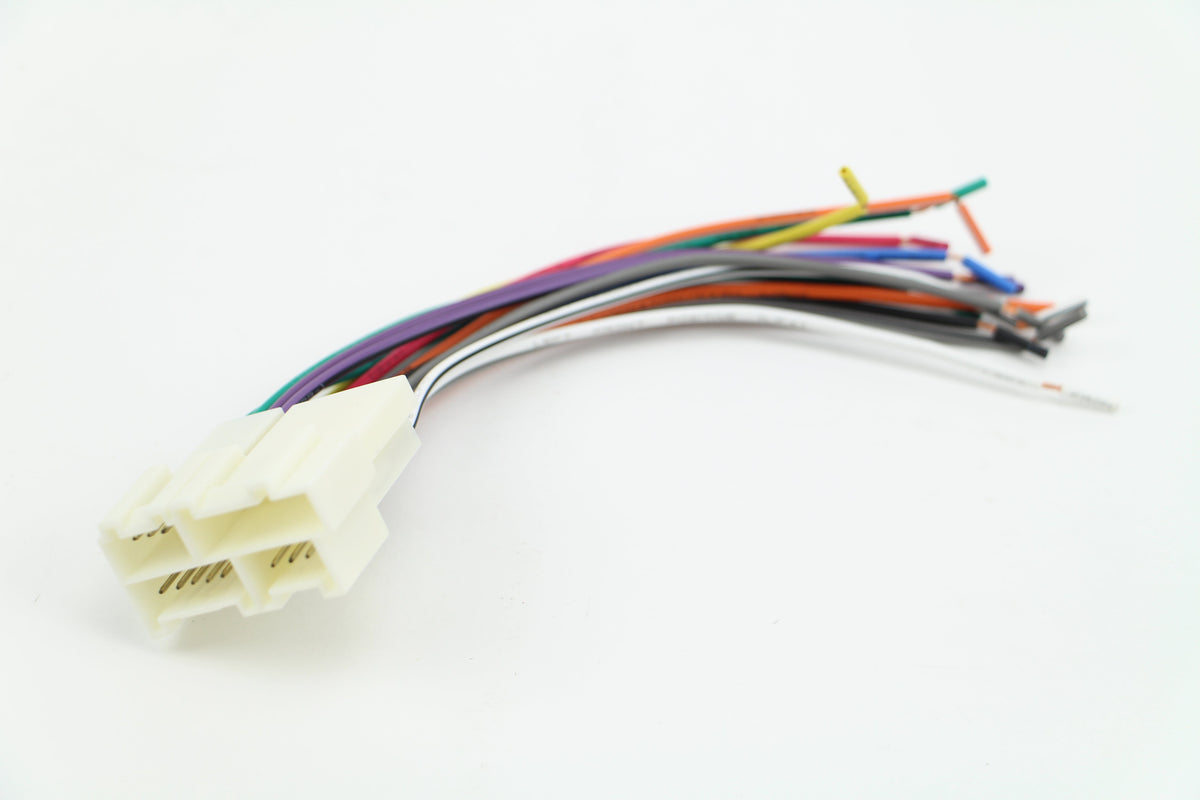

Replace Install Wire Harness for 1988 - 2005 Buick, Cadillac, Chevrolet, Pontiac, GMC, Isuzu, and Oldsmobile

Key Features:  XT1858-11

• Our premium quality wire harnesses help to install your aftermarket stereo with ease
• Designed to be a replacement for the original factory harness
• Pre-stripped to make installation quick and easy. Follow EIA color-coded and special wire function as per compatible model.
• Wire Length: 8 Inch

Item Description:
Thinking of replacing your aftermarket harness, then the Xtenzi wire harness is a must for a quick and clean installation. Our premium quality wire harnesses help to install your aftermarket stereo with ease. The Xtenzi harness eliminates cutting your OE radio plug and allows you to reinstall your factory receiver if necessary. After connecting the wire harness, your install is made simple with our E.I.A. color coded wires. Please note these harnesses are designed to be a replacement for the original factory harness. They are only designed to work on Factory radios which are NOT 'factory amplified' or 'premium sound' models. Although they may still fit these radios, we're unable to offer any form of assistance or support when purchasing this for 'premium sound radios' and often times they won't even connect to premium sound radios/systems without additional parts or OEM sound Amplifiers.

Compatible with the following Select Vehicles Models: (Only For REF, REC, and RAK Factory Radios)

BUICK:

• 1988 - 1996 Buick Century
• 1988 - 1990 Buick Electra
• 1988 - 1994 Buick LeSabre
•   1988 - 1994 Buick Park Avenue
•    1988 - 1994 Buick Regal
•   1992 - 1995 Buick Riviera
•   1991 - 1994 Buick Roadmaster
• 1989 - 1995 Buick Skylark

CADILLAC:

• 1988 - 1991 Cadillac Coupe De Ville
• 1992 - 1993 Cadillac De Ville
• 1994 - 1995 Cadillac De Ville
• 1988 - 1991 Cadillac El Dorado
• 1999 - 2002 Cadillac Escalade (1999-2002)
• 1988 - 1993 Cadillac Fleetwood
• 1988 - 1991 Cadillac Seville

CHEVROLET:

• 1991 - 1995 Chevrolet Astro
• 1996 - 2005 Chevrolet Astro
• 2002 - 2002 Chevrolet Avalanche
•    1988 - 1990 Chevrolet Beretta/Corsica
• 1991 - 1996 Chevrolet Beretta/Corsica
• 1992 - 1994 Chevrolet Blazer (Full Size)
• 1990 - 1994 Chevrolet Blazer (S-10)
•   1995 - 1997 Chevrolet Blazer (S-10)
• 1998 - 2001 Chevrolet Blazer (S-10)
• 1990 - 1992 Chevrolet Camaro
• 1993 - 1996 Chevrolet Camaro
• 1997 - 2003 Chevrolet Camaro
• 1994 - 1996 Chevrolet Caprice
• 1991 - 1993 Chevrolet Caprice Classic
•  1988 - 1990 Chevrolet Cavalier
• 1991 - 1994 Chevrolet Cavalier
• 1995 - 1999 Chevrolet Cavalier
•  1990 - 1990 Chevrolet Celebrity
• 1990 - 1996 Chevrolet Corvette
•  1997 - 2004 Chevrolet Corvette
• 1996 - 2000 Chevrolet Express
• 1994 - 1996 Chevrolet Impala SS
• 1990 - 1994 Chevrolet Lumina
• 1995 - 2001 Chevrolet Lumina
• 1990 - 1996 Chevrolet Lumina APV
• 1997 - 2000 Chevrolet Malibu
• 1995 - 1999 Chevrolet Monte Carlo
• 1988 - 1994 Chevrolet Pick up (C/K)
• 1995 - 2000 Chevrolet Pick up (C/K)
• 1990 - 1993 Chevrolet S-10
• 1994 - 1997 Chevrolet S-10
• 1998 - 2001 Chevrolet S-10
• 1999 - 2002 Chevrolet Silverado
• 1989 - 1991 Chevrolet Suburban
• 1992 - 1994 Chevrolet Suburban
• 1995 - 1999 Chevrolet Suburban
• 2000 - 2002 Chevrolet Suburban
• 1995 - 1999 Chevrolet Tahoe
• 2000 - 2002 Chevrolet Tahoe
• 2000 - 2000 Chevrolet Tahoe (Z71 or Limited)
• 1988 - 1995 Chevrolet Van
• 1997 - 1999 Chevrolet Venture

GMC:

• 1998 - 2001 GMC Envoy
• 1990 - 1994 GMC Jimmy
• 1995 - 1997 GMC Jimmy
• 1998 - 2001 GMC Jimmy
• 1988 - 1994 GMC Pick Up (C/K)
• 1995 - 2000 GMC Pick Up (C/K)
• 1992 - 1993 GMC S-15
• 1992 - 1995 GMC Safari
• 1996 - 2005 GMC Safari
• 1996 - 2000 GMC Savana
• 1999 - 2002 GMC Sierra
• 1994 - 1997 GMC Sonoma
•  1998 - 2001 GMC Sonoma
•  1988 - 1991 GMC Suburban
•  1992 - 1994 GMC Suburban
• 1995 - 1999 GMC Suburban
• 1988 - 1995 GMC Van
•  1992 - 1994 GMC Yukon
• 1995 - 1999 GMC Yukon
• 2000 - 2002 GMC Yukon
• 1999 - 2002 GMC Yukon Denali
• 2000 - 2002 GMC Yukon XL

ISUZU:    1996 - 1997 Isuzu Hombre

•   1998 - 2000 Isuzu Hombre

OLDSMOBILE:

•   1992 - 1995 Oldsmobile Achieva
•   1991 - 1994 Oldsmobile Bravada
•   1996 - 1997 Oldsmobile Bravada
•   1990 - 1991 Oldsmobile Cutlass Calais
•   1988 - 1996 Oldsmobile Cutlass Ciera
•   1990 - 1994 Oldsmobile Cutlass Supreme
•   1989 - 1993 Oldsmobile Eighty Eight
•   1989 - 1993 Oldsmobile Ninety Eight
•   1990 - 1996 Oldsmobile Silhouette
•   1997 - 1999 Oldsmobile Silhouette
•   1990 - 1992 Oldsmobile Toronado

PONTIAC:

• 1990 - 1991 Pontiac 6000
• 1992 - 1993 Pontiac Bonneville
• 1994 - 1999 Pontiac Bonneville
• 1990 - 1992 Pontiac Firebird / Trans Am
• 1993 - 2002 Pontiac Firebird / Trans Am
• 1990 - 1995 Pontiac Grand Am
• 1996 - 2000 Pontiac Grand Am
• 1988 - 1989 Pontiac Grand Prix
• 1990 - 1993 Pontiac Grand Prix
• 1994 - 2003 Pontiac Grand Prix
• 1999 - 1999 Pontiac Montana
• 1989 - 1994 Pontiac Sunbird
• 1995 - 1999 Pontiac Sunfire
• 1990 - 1996 Pontiac Trans Sport
• 1997 - 1999 Pontiac Trans Sport
• 1991 - 1994 Saturn S Series
• 1995 - 1999 Saturn S Series

Technical Specifications:

­­­­­­­­­­­­­­­­­­­Brand Name: Xtenzi

Model Number: XT1858-11

Wire length: 8 In

Connector Color:

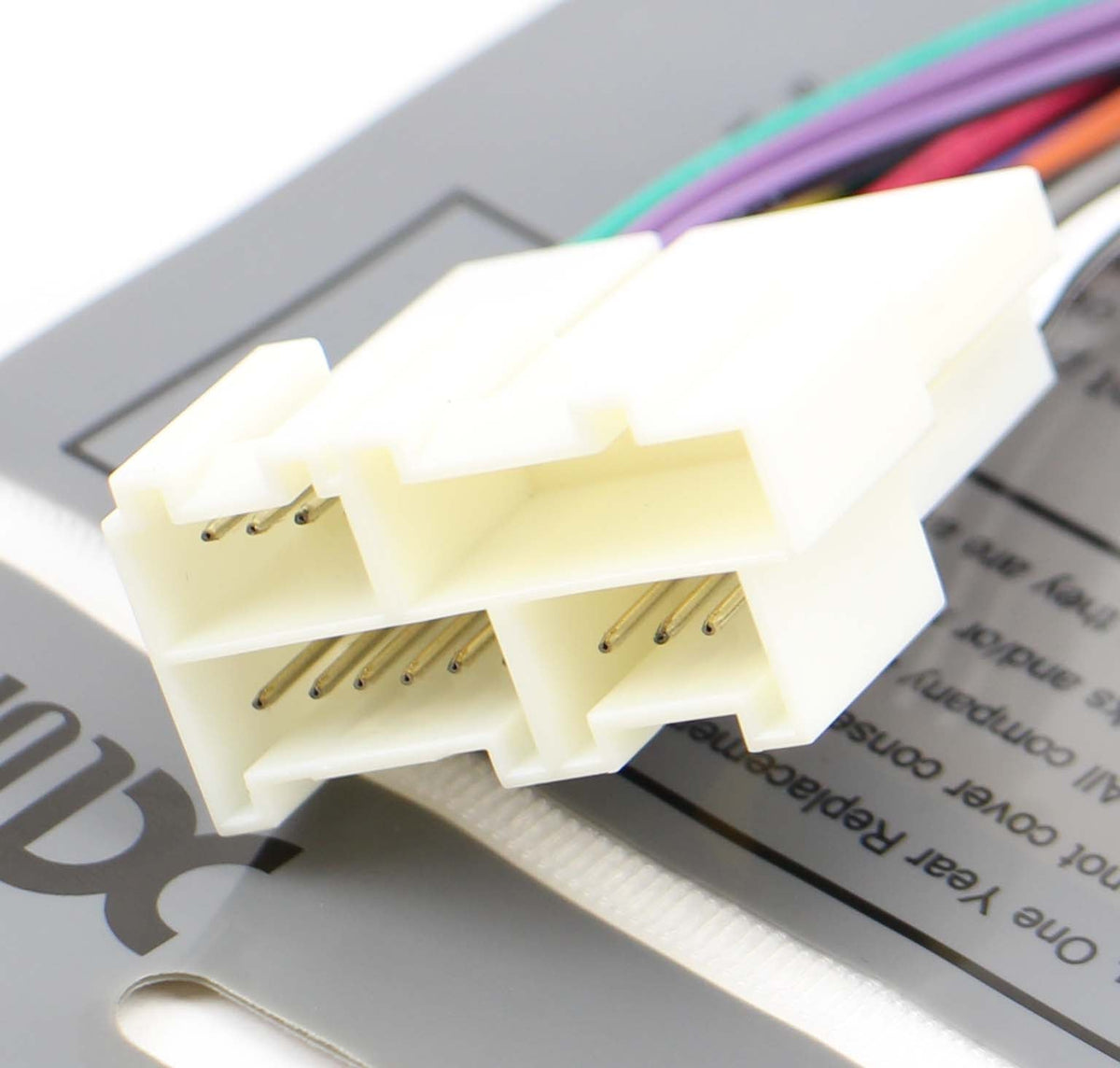

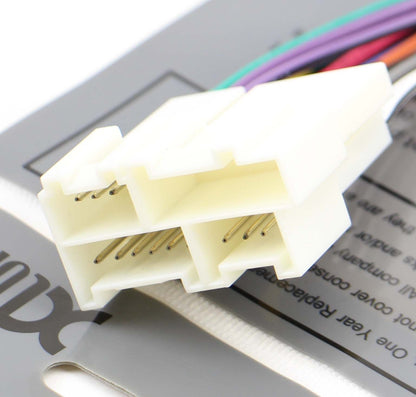

Connector no Of Pins: 22Pin.

What is Included within the Package:
1 x Xtenzi Wire Harness Harness

EIA-Wire Harness Connections:

• Yellow 12V Constant
• Red 12V Accessory
• Black - Ground
• Orange Dash Light Dimmer/Illumination
• Green Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White Left Front Speaker (+)
• White with Black Stripe Left Front Speaker (-)
• Purple Right Rear Speaker (+)
• Purple with Black Stripe Right Rear Speaker (-)
• Gray Right Front Speaker (+)
• Gray with Black Stripe Right Front Speaker (-)

* Some wire functions may be different, please read your Radio install guide carefully or ask an installer.
