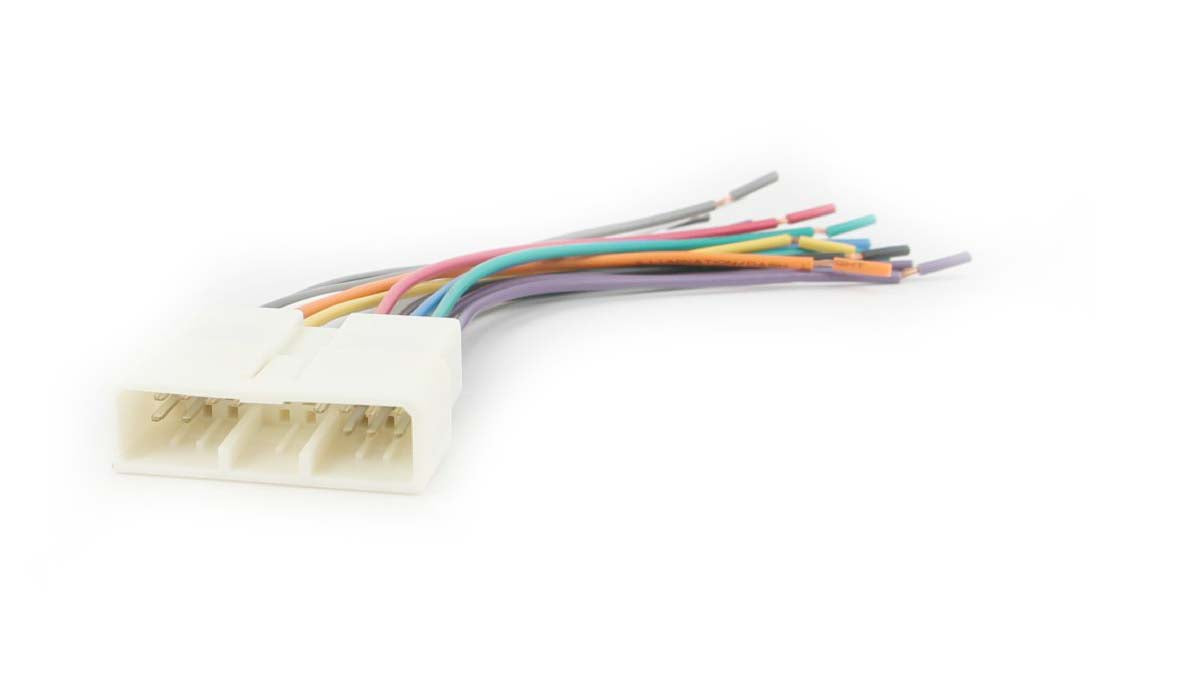

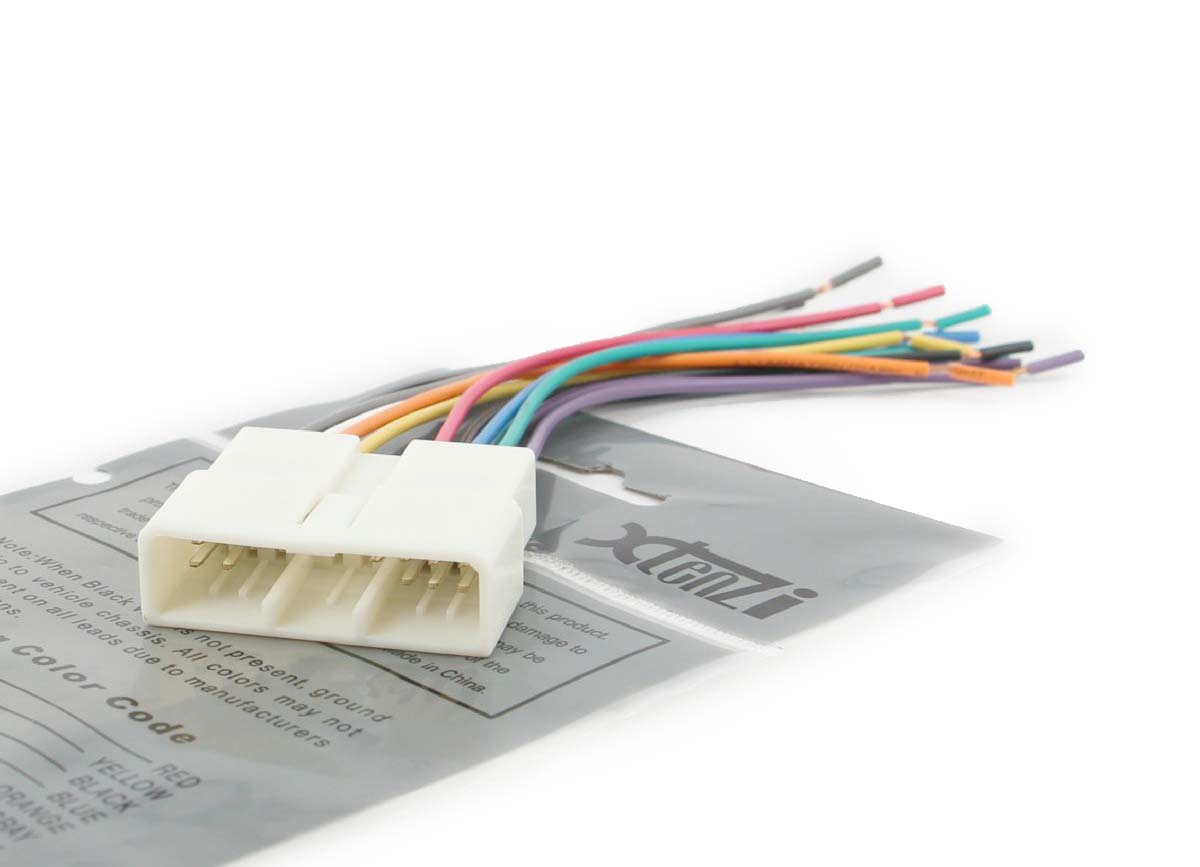

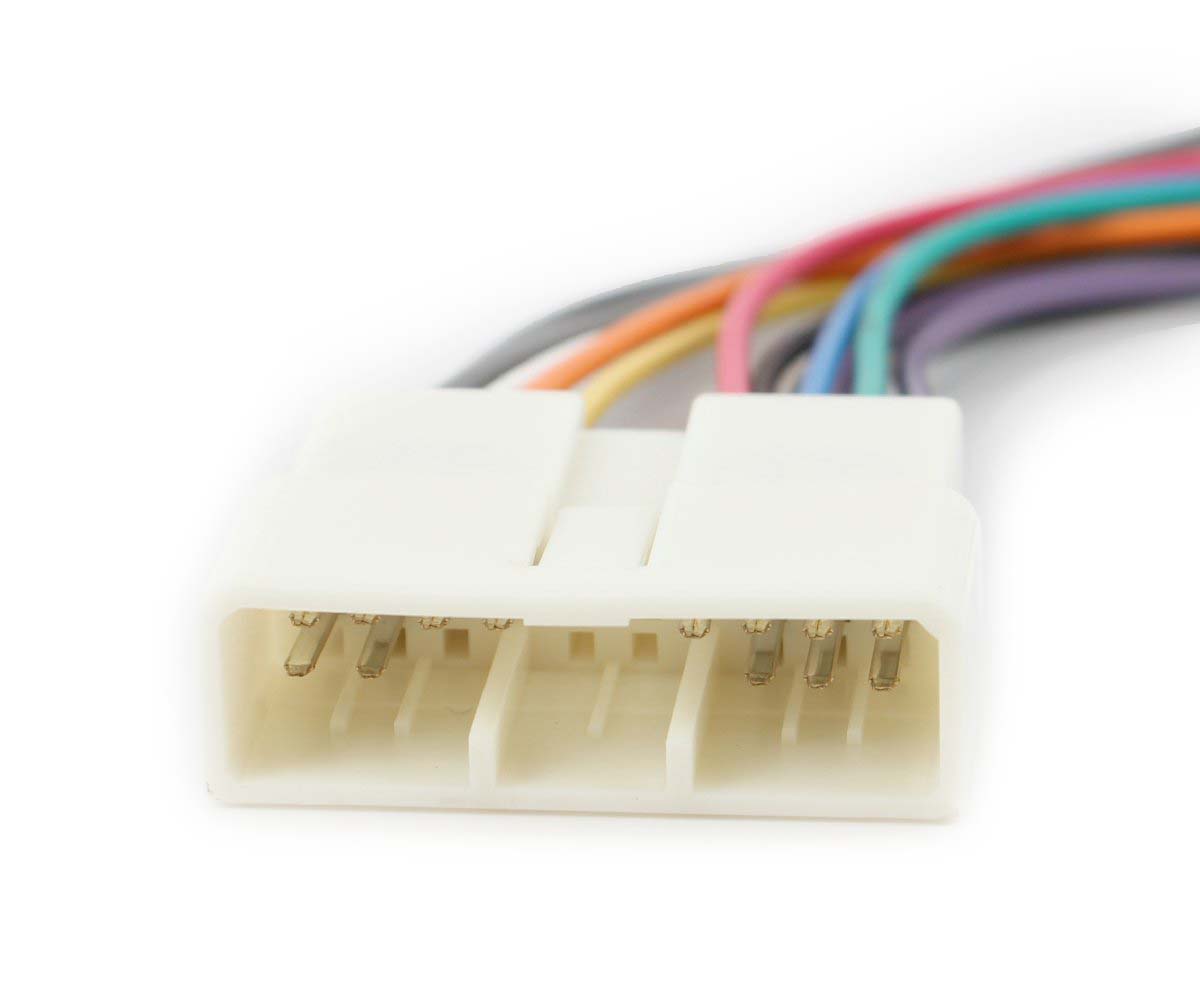

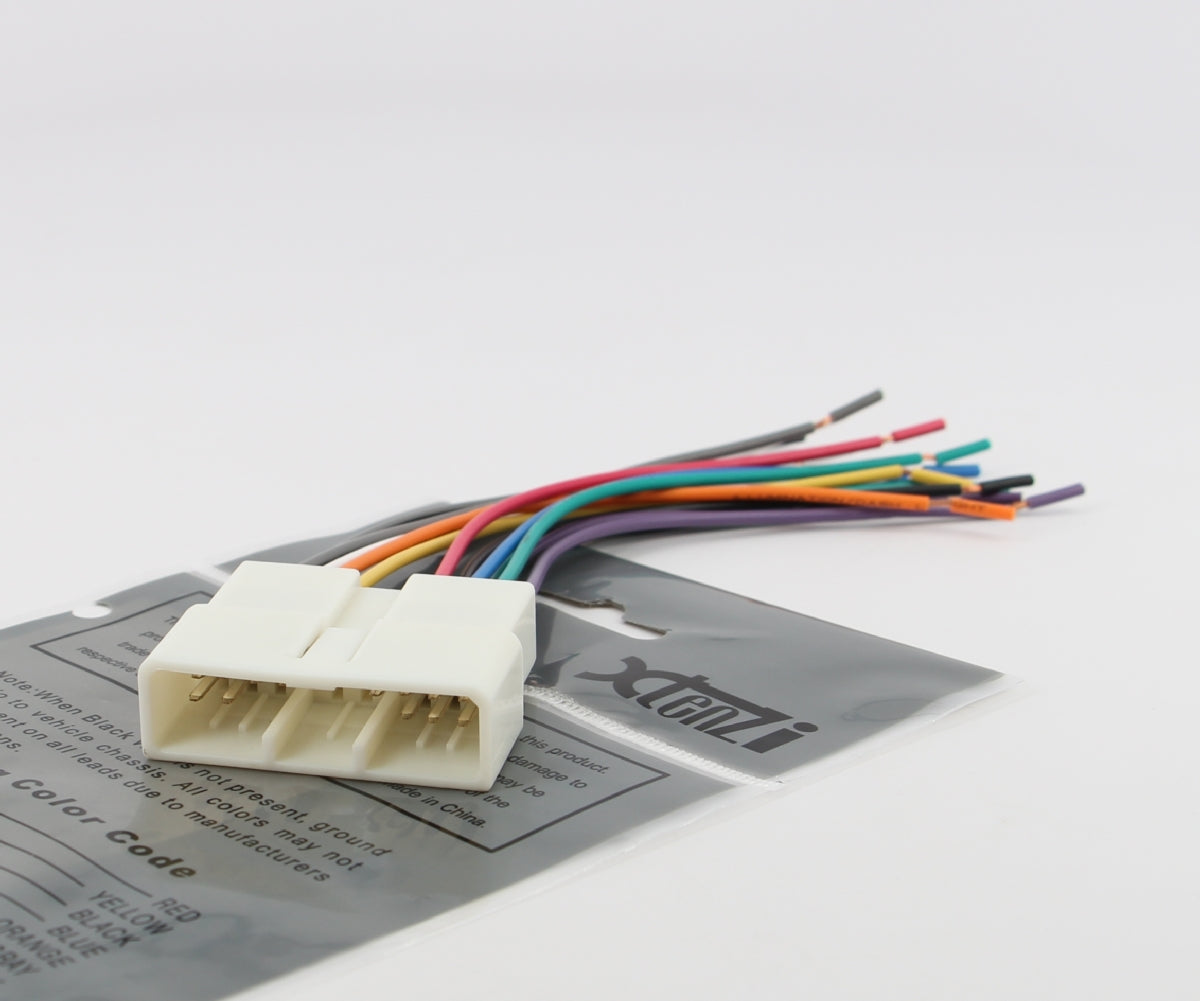

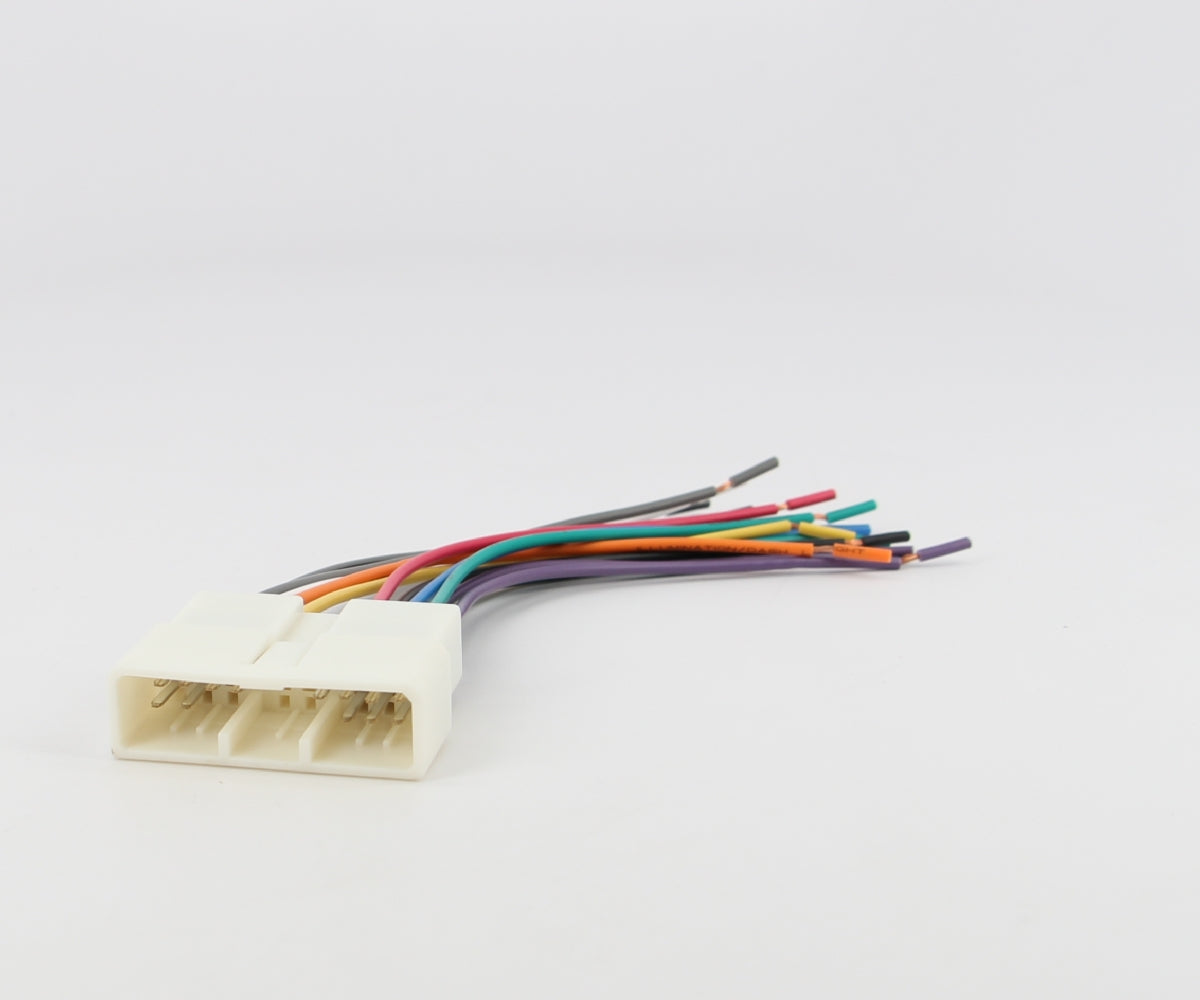

Replace Install Wire Harness for 1986-2004 Acura, Honda & Isuzu Models
- Product SKU: XT1720-11
- Order within
- Our premium quality wire harnesses help to install your aftermarket stereo with ease
- Designed to be a replacement for the original factory harness
- Pre-stripped to make installation quick and easy. Follow EIA color-coded and special wire function as per compatible model.
- Wire Length: 8 Inch
Thinking of replacing your aftermarket harness, then the Xtenzi wire harness is a must for a quick and clean installation. Our premium quality wire harnesses help to install your aftermarket stereo with ease. The Xtenzi harness eliminates cutting your OE radio plug and allows you to reinstall your factory receiver if necessary. After connecting the wire harness, your install is made simple with our E.I.A. color coded wires. Please note these harnesses are designed to be a replacement for the original factory harness. They are only designed to work on Factory radios which are NOT 'factory amplified' or 'premium sound' models. Although they may still fit these radios, we're unable to offer any form of assistance or support when purchasing this for 'premium sound radios' and often times they won't even connect to premium sound radios/systems without additional parts or OEM sound Amplifiers.
Compatible with the following Select Vehicles Models: (Only For REF, REC, and RAK Factory Radios)
- 1996 - 1999 Acura CL
- 1986 - 1989 Acura Integra
- 1990 - 1998 Acura Integra
- 1999 - 2001 Acura Integra
- 1986 - 1989 Acura Legend
- 1990 - 1996 Acura Legend
- 1991 - 2004 Acura NSX
- 1996 - 1998 Acura RL
- 1996 - 1998 Acura TL
- 1992 - 1994 Acura Vigor
- 1986 - 1989 Honda Accord
- 1990 - 1993 Honda Accord
- 1994 - 1997 Honda Accord
- 1986 - 1995 Honda Civic
- 1996 - 1998 Honda Civic
- 1999 - 2000 Honda Civic
- 1996 - 1998 Honda Civic EX
- 1997 - 1998 Honda CR-V
- 1986 - 1991 Honda CRX
- 1993 - 1997 Honda Del Sol
- 1995 - 1998 Honda Odyssey
- 1986 - 1991 Honda Prelude
- 1992 - 1996 Honda Prelude
- 1997 - 1998 Honda Prelude
- 1996 - 1999 Isuzu
Brand Name: Xtenzi
Model Number: XT1720-11
Wire length: 8
Connector no Of Pins: 22Pin.
What is Included within the Package:
1 x Xtenzi Wire Harness Harness
EIA-Wire Harness Connections:
- Yellow 12V Constant
- Red 12V Accessory
- Black - Ground
- Orange Dash Light Dimmer/Illumination
- Green Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White Left Front Speaker (+)
- White with Black Stripe Left Front Speaker (-)
- Purple Right Rear Speaker (+)
- Purple with Black Stripe Right Rear Speaker (-)
- Gray Right Front Speaker (+)
- Gray with Black Stripe Right Front Speaker (-)
* Some wire functions may be different, please read your Radio install guide carefully or ask an installer.
