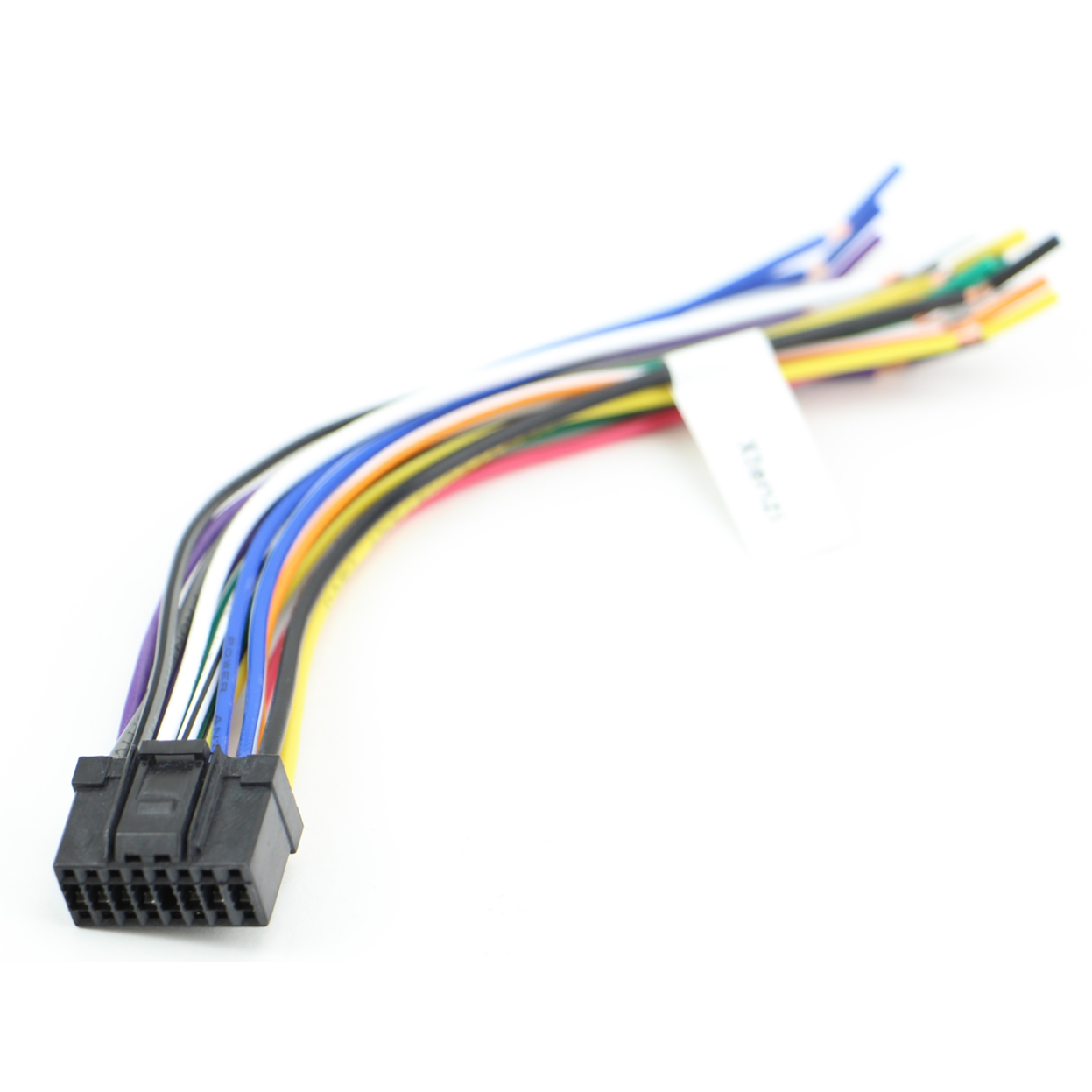

Xtenzi Wire Harness Radio for Pioneer (CDE6563)

Description:

When replacing your Aftermarket Harness or missing Harness, the Xtenzi wire harness is a must for a quick and clean installation. It Help to install aftermarket stereo with ease. After connecting it, your install is simple as the wires will color-match according to function.

Xtenzi brand wire harness made to work as replacement for your Pioneer Stereo Receivers radio.

Compatibility:
Some new models listed below that are compatible to this harness,
PIONEER DEH-P7800MP
PIONEER DEH-P780MP
PIONEER DEH-P8600MP
PIONEER DEH-P860MP
PIONEER DEH-P880PRS
PIONEER DEH-P9600MP
PIONEER DEH-P960MP
PIONEER DEH-P9800BT
PIONEER DEH-P980BT
PIONEER DEH-P6900UB
PIONEER DEH-P690UB
PIONEER DEH-P7900BT
PIONEER DEH-P790BT
PIONEER DEH-P8400MP
PIONEER DEH-P840MP
PIONEER DEH-P8500MP
PIONEER DEH-P850MP
PIONEER DEH-P90HDD
PIONEER DEH-P930
PIONEER DEH-P9300
PIONEER DEH-P9400MP
PIONEER DEH-P940MP

Technical Harness Specs:

• Brand = Xtenzi
• Wire length = 6 inch
• Warranty = One year

Connections: E.I.A. Color Code

Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue - Power Antenna
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
*Some additional wire has special function for more detail see radio manual or ask us

Package Includes:

• Wire harness For Radio/Stereo – Qty 1PCS.

Please see the diagram before you purchase if that seems to look like you radio fitting or you can ask
